Dead Battery Warning (Output)

Function

The signal will be output when the voltage of the encoder back-up battery becomes lower than acceptable.

Usage

The signal is used to check the timing battery replacement. For example, the battery voltage becomes lower than acceptable.

ON Condition

The signal will be turned ON when the voltage of the encoder back-up battery becomes lower than acceptable.

OFF Condition

The signal will be turned OFF when the power is turned ON after the dead battery was replaced.

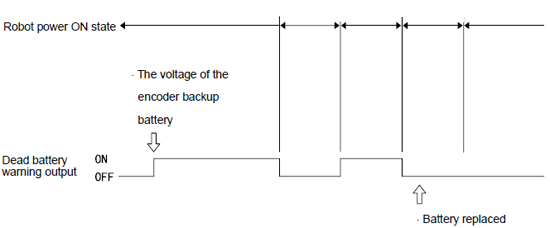

Timing Chart
