Dead Battery Warning (Output)

Function

The signal will be output when the voltage of the encoder back-up battery or memory back-up battery becomes dangerously low.

Usage

The signal is used to check the timing of battery replacement (lowering of the battery voltage).

ON conditions

The signal will be turned ON when the voltage of the encoder back-up battery or memory backup battery becomes dangerously low.

OFF conditions

The signal will be turned OFF when the power is turned ON after the dead battery was replaced.

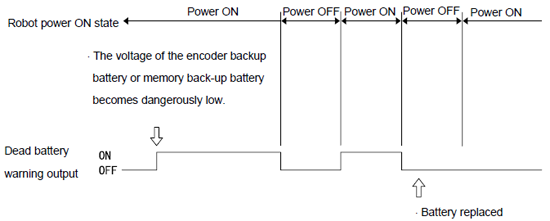

Timing chart
