Connecting LAN

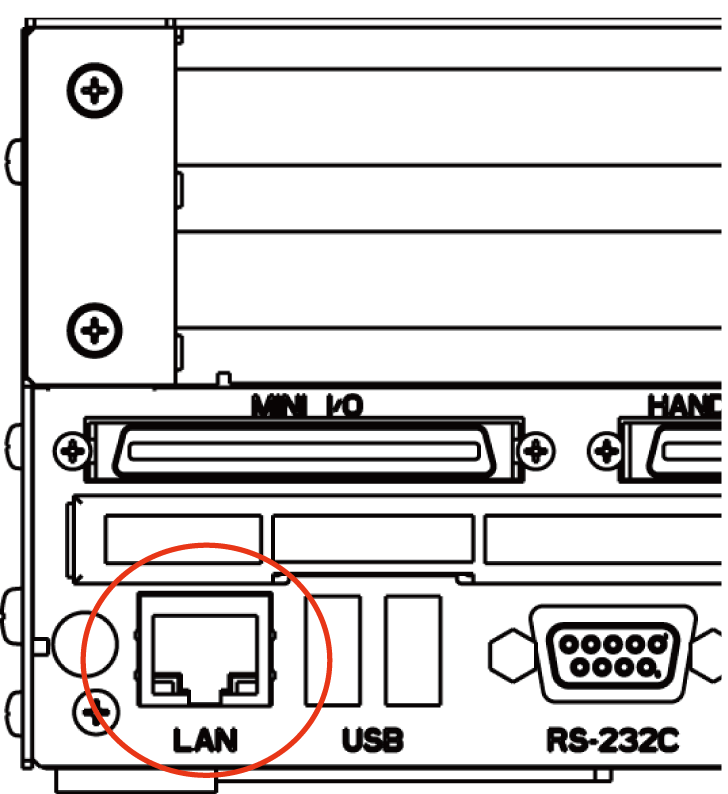

Connect LAN cable to LAN connector.
Use shielded LAN cable with length shorter than 30 cm.
Perform communication setting with teach pendant when communicate with LAN port. Refer to the "Displaying and Changing Communication Settings Screen " of TEACH PENDANT OPERATION GUIDE.
When connecting USB of the controller, Ethernet, RS-232C connector to the commercial devices, additional measures against noise, such as ferrite core and others, could be required depending on the condition. Please check your operation environment. We do not guarantee performance and maintenance of the connection with commercial devices.
For HSR/ HSA1 Series Robots

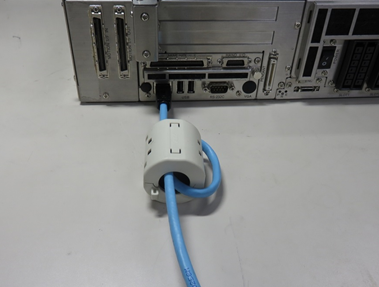

When using a motor & encoder cable that is more than 12m for HSR/ HSA1 series robots, the motor & encoder cable should be wound twice around the ferrite core included in the package of motor & encoder cable.
