Warning Labels

The robot unit and controller have warning labels. These labels alert the user to the danger of the areas on which they are pasted. Be sure to observe the instructions printed on those labels.

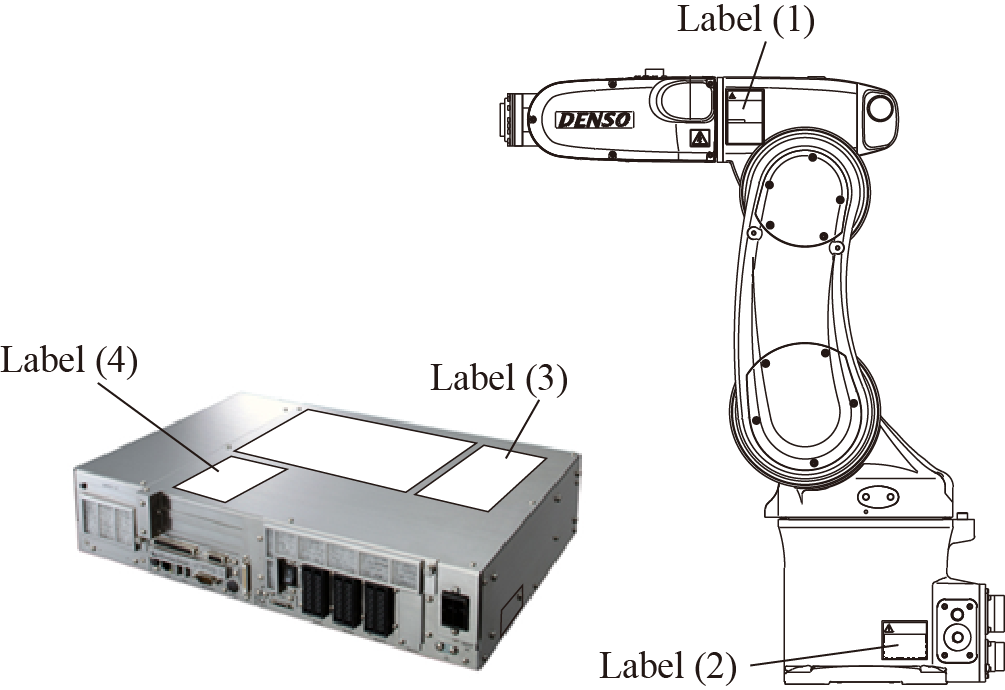

(Example: Location of labels)

Warning label Instructions printed on the label

Label (1)

Risk of injury.

Never enter the restricted space.

<Except HM>

Label (2)

<HM>

Label (2)

For UL-Listed robot units only

Risk of injury.

This label alerts the user that pressing the brake release switch could drop the arm.

  • Other than HM : Moving robot can cause serious injury.
  • HM : Moving robot can cause serious injury.

Label (3)

DO NOT OPEN UNDER LOAD.
Do not touch inside within 6 minutes of turning off power and disconnecting cable.
Risk of electrical shock.

Label (4)

Risk of injury.

Be sure to perform lockout/tagout before starting servicing.

Turning the power ON when a person is inside the safety fence may move the arm, causing injuries.
