Operation Procedure

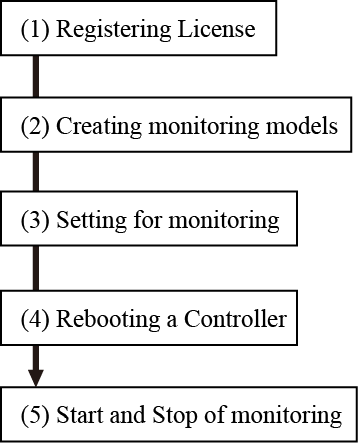

The following shows procedure of Virtual Fence function.

(1) Registering License

This function requires a license key.

To enter a license key, use a teach pendant.
For information on how to enter your license key, please refer to Displaying and Adding/Deleting Function Extension Screen in "TEACH PENDANT OPERATION GUIDE".

(2) Creating Monitoring Models

Create monitoring models with Arm modeling of WINCAPSIII, and send it to a controller.

Once the monitoring model data arrives, the controller will start monitoring.

(3) Setting for Monitoring

Set the monitoring details with a teach pendant.

(4) Rebooting a Controller

Reboot a controller. Virtual fence is enabled after rebooting.

(5) Start and Stop of Monitoring

Start/Stop the monitoring with a teach pendant, mini pendant, or command.
