Grounding the Robot Unit

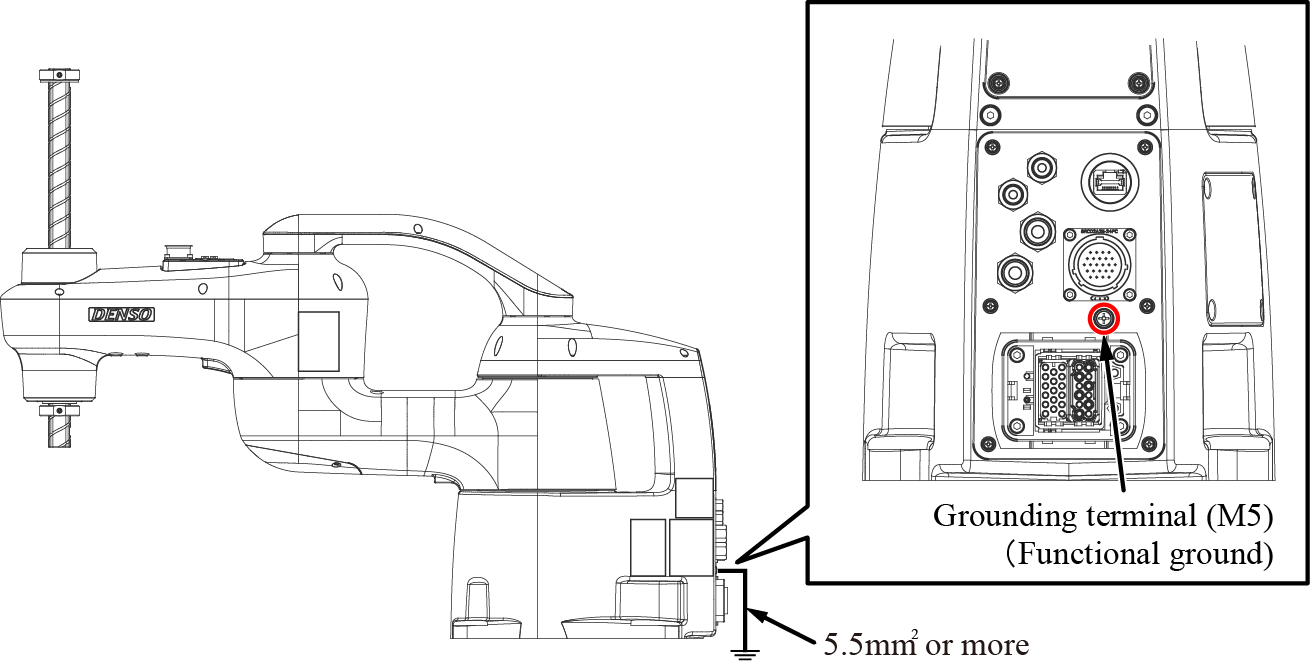

Ground the grounding terminal of the robot unit using a wire of 5.5 mm2 or more.
Use a dedicated grounding wire and grounding electrode. Do not share them with other power facilities or welding machines.
Standard Type, Bellows Type
|
|
Dust- & Splash-proof Type, Cleanroom type, H1 grease type
|
To Use 6 m or Longer Motor and Encoder Cable
Motor and encoder cable which length is 6 m or larger is shipped with a connection wire and two ferrite cores.

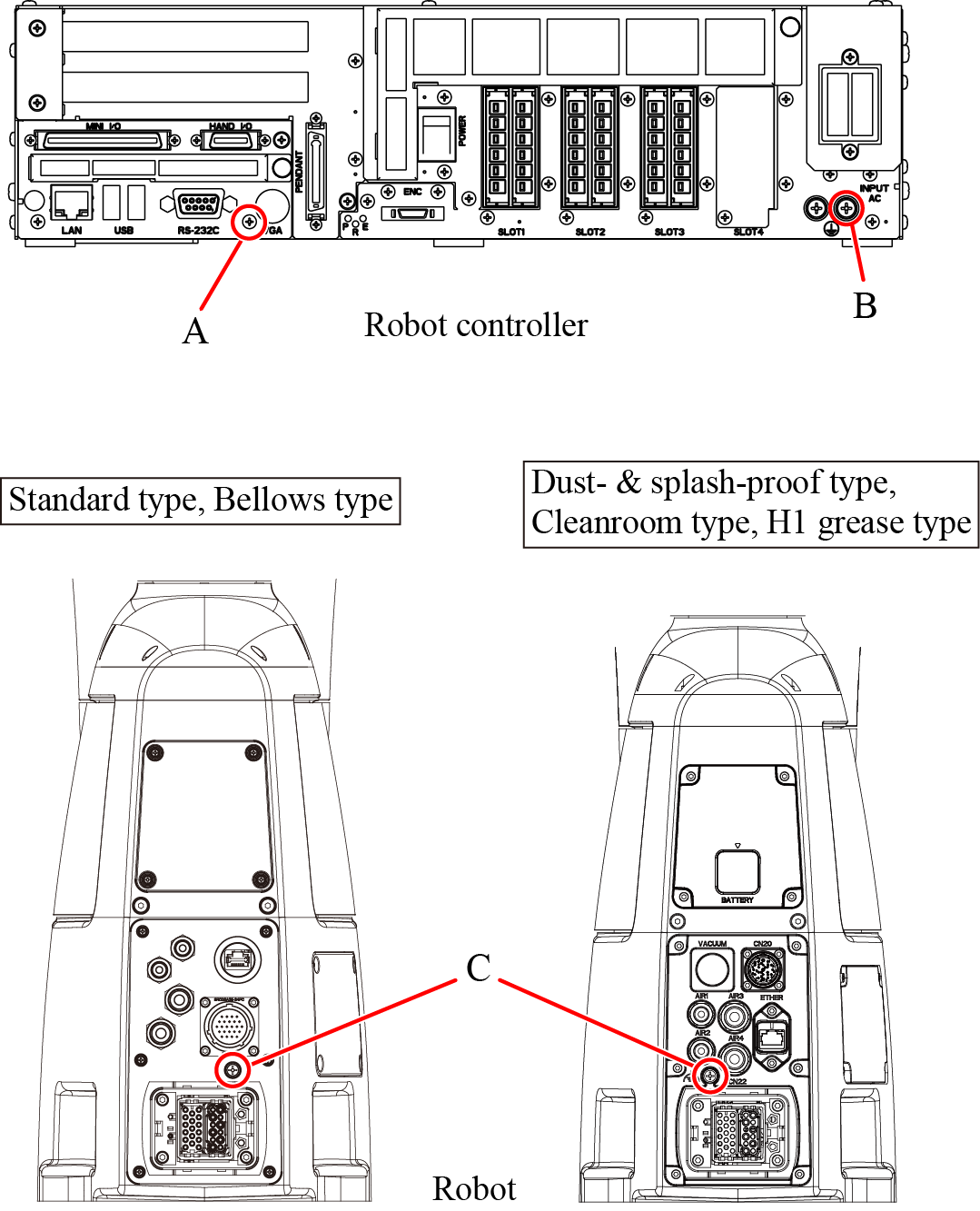

- Connect the provided wire to the A part of the controller for grounding.
- Install the provided ferrite core to the earth cable that connects to the B part of the controller.
- Install the provided ferrite core to the earth cable that connects to the C part of the controller.
