System Configuration

The following shows the system configuration when using the origin return guidance function.

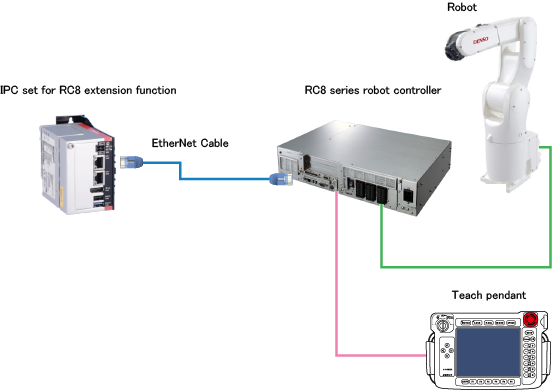

System Configuration Layout

IPC Set for RC8 Extension Function

IPC set for RC8 extension function is a device to calculate the path of the origin return and send the calculation result to the RC8 series controller.

As the factory default, UWF settings are OFF.
