ID : 2913

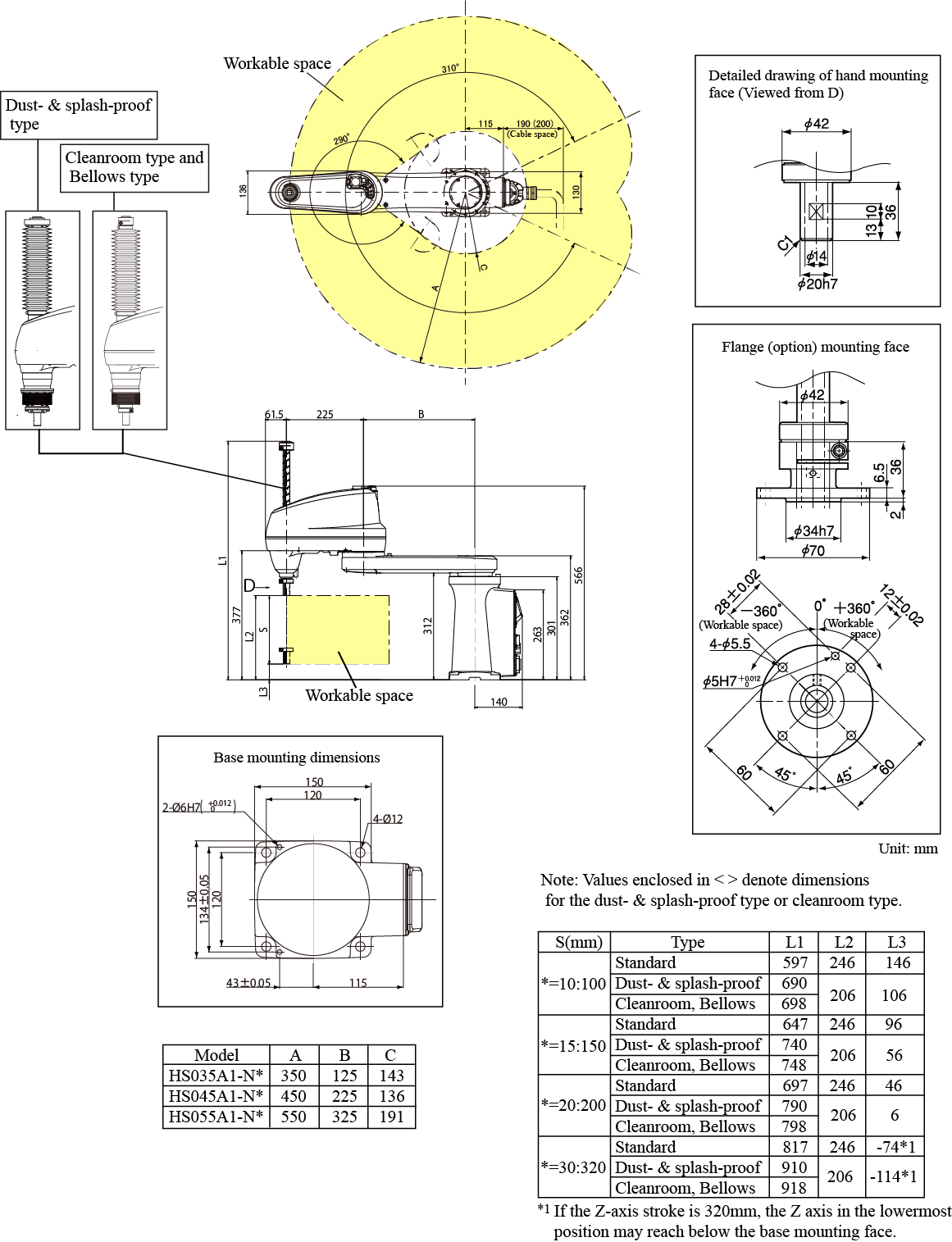

HSA1 Series; Floor-mount
Please refer to this if the figure is not clear.
(PDF:226KB)
ID : 2913
