ID : 4742

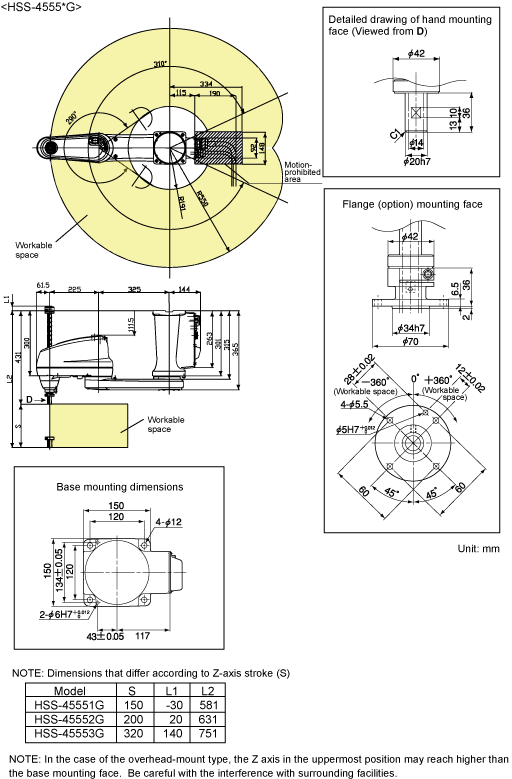

HSS-4555*; Arm Length 550 mm, Overhead-mount, Standard Type
 |
Please refer to this if the figure is not clear.(PDF:791KB)
ID : 4742
HOME- ROBOTS
- HS SERIES USER'S MANUAL
- Specifications of the Robot Unit
- Outer Dimensions and Workable Space of the Robot Unit
- HSS-4555*; Arm Length 550 mm, Overhead-mount, Standard Type
