Image Processing Application

For RC8 series, an image processing application can be used by using a camera connected. Available applications are "EVP" and "EIS".

EVP : Processes a pick-and-place operation image.
EIS : Stores the connected camera images into a computer automatically.

Applications "EVP" and "EIS" are included in "RC Vision" software package.

For details, refer to the application's manual.

Application	Description
EVP	EVP is an image processing application that processes a pick-and-place operation image by using Denso Robot Vision (Denso Robot Imaging Library) (RC8 series robot controller). Using EVP allows users to set the necessary parameters without programming. With the GUI on the computer, users select arbitrary image processing parameters suitable for the target workpieces, and then send the parameters to robots as ".evp" files. Users then execute a ".evp" file by using a robot program depending on the operation to be performed. To use EVP, you need to register each license below. If you do not have a license, please purchase the license. Register "RC Vision (EVP)" license in your computer. Register "EVP Runtime" license in your RC8 series controller.
EIS	EIS is a software that stores RC8 series-connected camera images into a computer. Images taken by Built-in Vision (EVP) are temporarily stored in robot controller (hereafter, RC8 series), and reset by the controller power-off. By using EIS, these images are automatically stored in your computer as image files. To use EIS, you need to register a license below. If you do not have a license, please purchase the license. Register "RC Vision (EIS)" license in your computer.

Application

Description

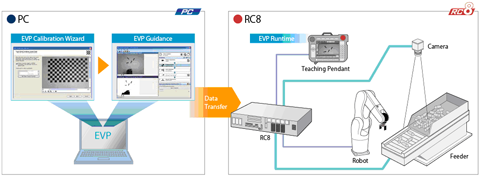

EVP

EVP is an image processing application that processes a pick-and-place operation image by using Denso Robot Vision (Denso Robot Imaging Library) (RC8 series robot controller). Using EVP allows users to set the necessary parameters without programming. With the GUI on the computer, users select arbitrary image processing parameters suitable for the target workpieces, and then send the parameters to robots as "*.evp" files. Users then execute a "*.evp" file by using a robot program depending on the operation to be performed.

To use EVP, you need to register each license below. If you do not have a license, please purchase the license.

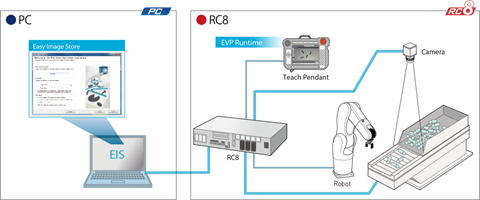

EIS

EIS is a software that stores RC8 series-connected camera images into a computer. Images taken by Built-in Vision (EVP) are temporarily stored in robot controller (hereafter, RC8 series), and reset by the controller power-off. By using EIS, these images are automatically stored in your computer as image files.

To use EIS, you need to register a license below. If you do not have a license, please purchase the license.

From the following URL, access DENSO WAVE Industrial Robot website and you can download "RC Vision".

If you register a trial license key, you can try an image processing application even you do not have a license (Trial period: three months).

Member registration is required to download and acquire licenses.

https://www.denso-wave.com/en/robot/product/software/RCVision.html
