VS SERIES USER'S MANUAL
Specifications of the Robot Unit

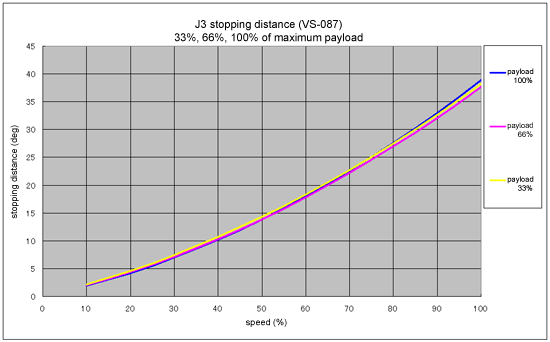

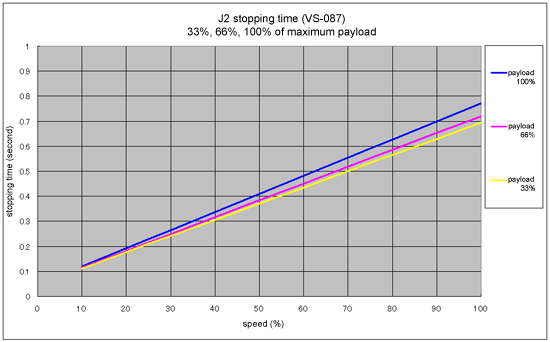

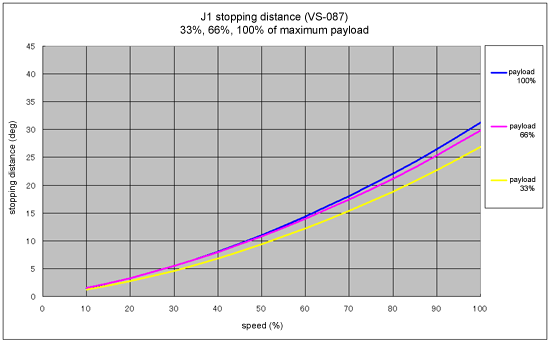

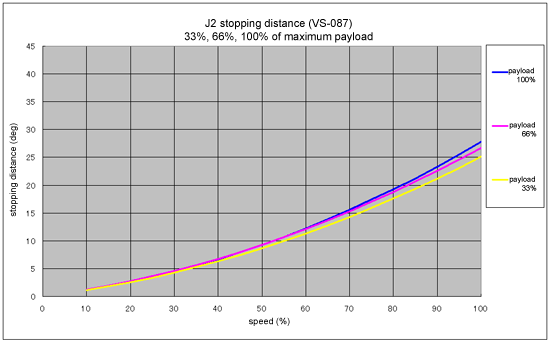

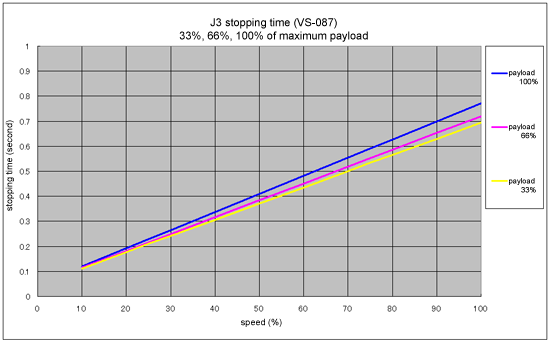

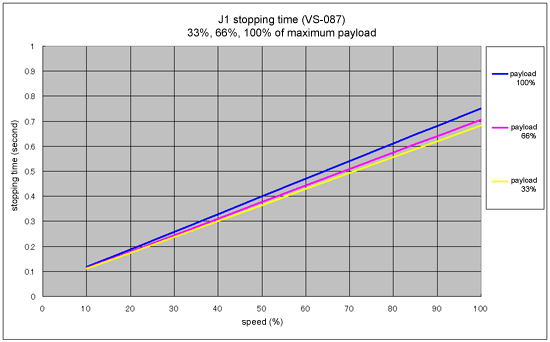

Stopping Time and Distance (Angle) at an Emergency Stop
VS-087
<< Prev
Next >>
SAFETY PRECAUTIONS
ROBOTS
START UP MANUAL
CONTROLLER & I/O
OPERATION GUIDE
PROGRAMMING
WINCAPSIII GUIDE
OPTION
ERROR CODE
PARAMETER LIST
OTHERS
VS-087
