Air Pipingand Signal Wiring

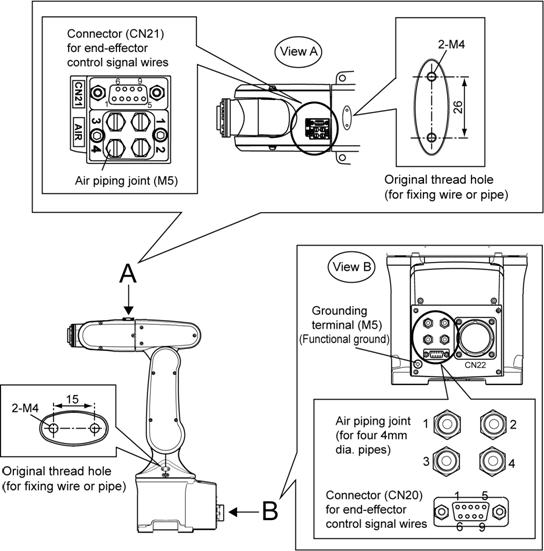

The VP series is equipped with 4 air pipes for air chuck and 9 signal lines.
Maintenance and inspection of the robot unit sometimes requires removing and installing the covers. Mount the stays for wiring and piping so that they will not interfere with removal/installation of the covers.
|
|
Pins #1 to # 9 on CN21 and those on CN20 are connected with each other. The allowable current per line is 1 A.
Use the attached connector sets for CN20 and CN21.
| Connector set part No. |
Part No. |
Model and part name | Appearance | |
|---|---|---|---|---|
|
410889-0110 |
For CN20 |
410877-0570 |
17JE-13090-02 (D1) (Socket connector) DDK Electronics, Inc. |
 |
| 410877-0580 |
17JE-09H1-1B (Straight hood) DDK Electronics, Inc. |
 |
||
|
For CN21 |
410877-0560 |
17JE-23090-02 (D1) (Pin connector) DDK Electronics, Inc. |
 |
|
| 410877-0580 |
17JE-09H1-1B (Straight hood) DDK Electronics, Inc. |
 |
||
