VP SERIES USER'S MANUAL
Specifications of the Robot Unit

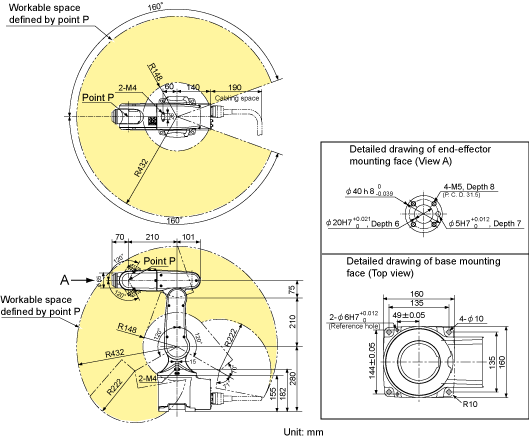

Outer Dimensions and Workable Space of the Robot Unit
VP-6242 (6-axis type)
<< Prev
Next >>
SAFETY PRECAUTIONS
ROBOTS
START UP MANUAL
CONTROLLER & I/O
OPERATION GUIDE
PROGRAMMING
WINCAPSIII GUIDE
OPTION
ERROR CODE
PARAMETER LIST
OTHERS
VP-6242 (6-axis type)
Please refer to this if the figure is not clear.（
PDF：433KB
）
