Outer Dimensions

Outer Dimensions

The outer dimensions of the robot controller are shown below.

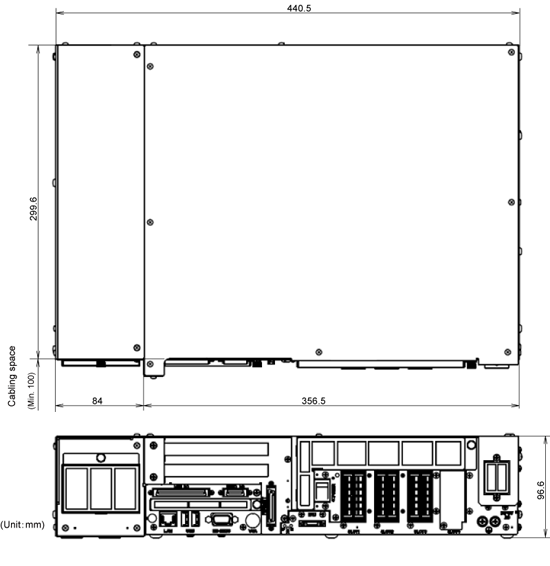

Models Except UL-Listed Ones

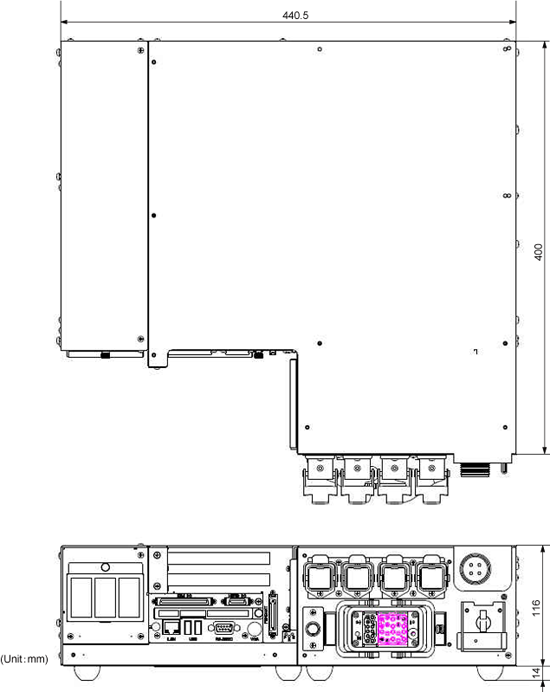

UL-Listed Model

For Fixing by Stay

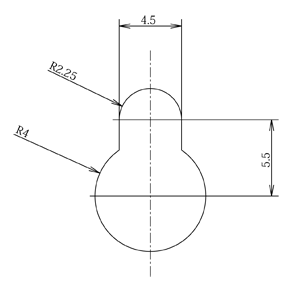

The method to install using dedicated stay is shown in the figure below.

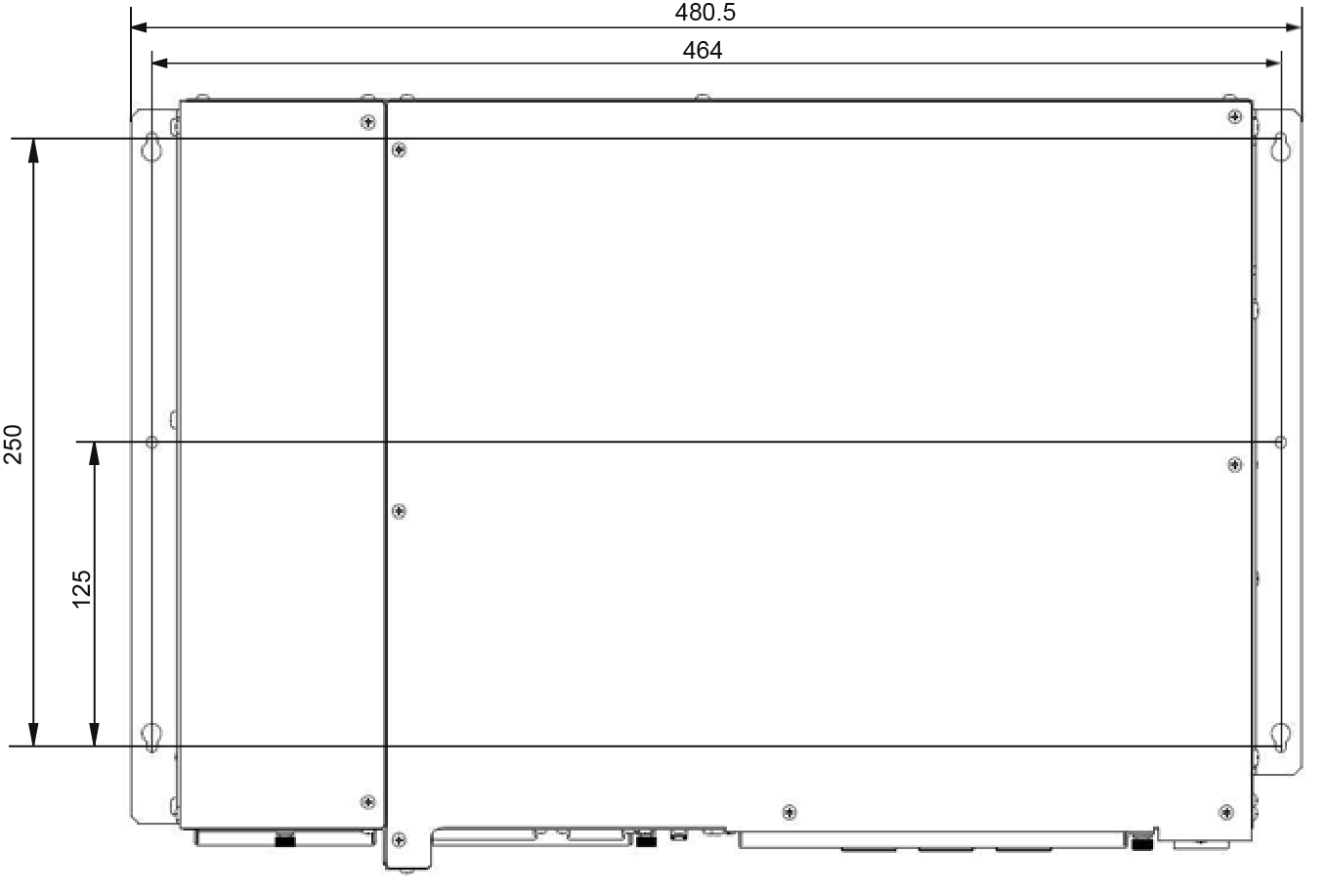

Models Except UL-Listed Ones

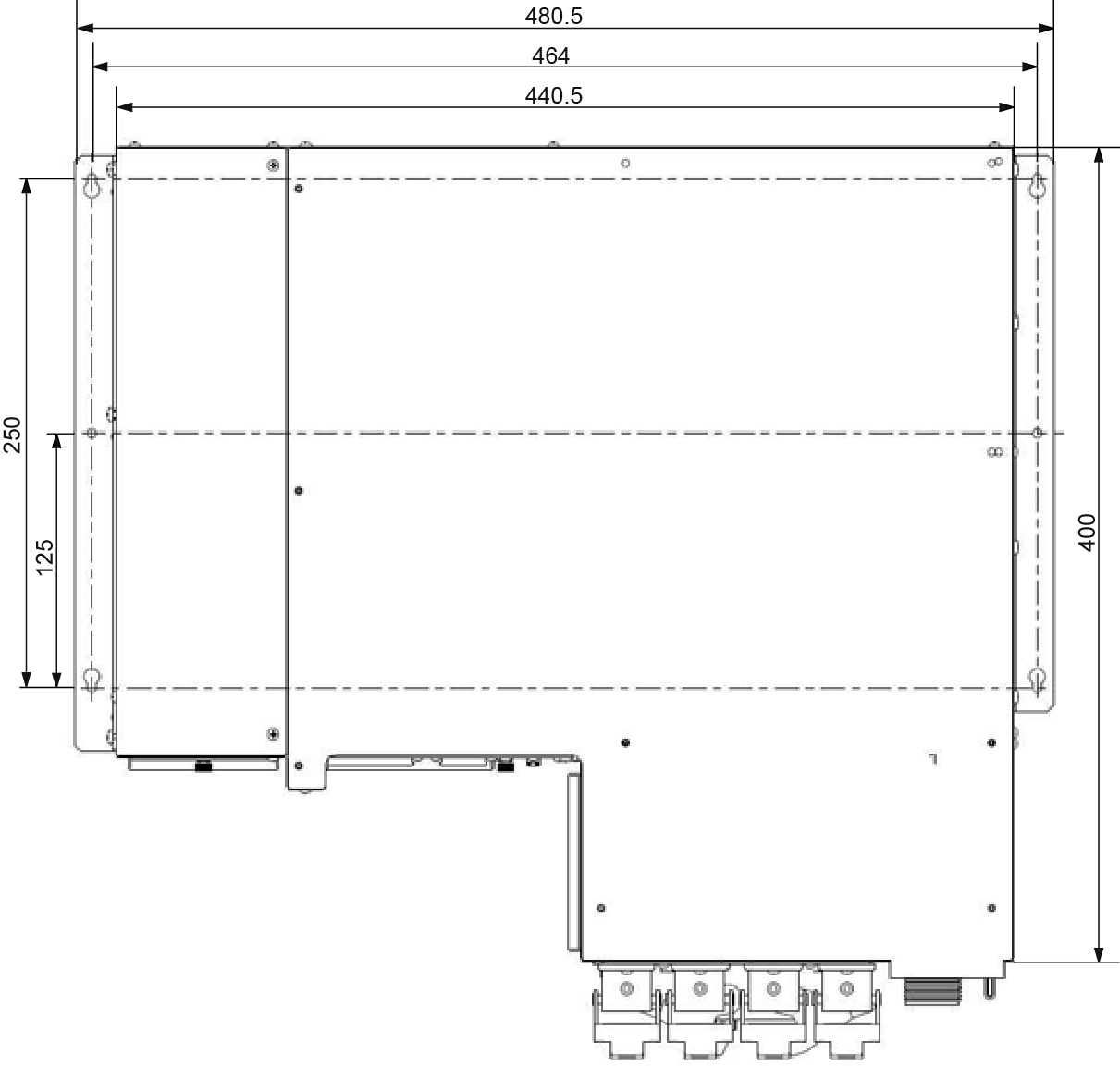

UL-Listed Model
