FLIP/NONFLIP

If the normal line on the flange surface tilts up the rotary axis of the 4th axis, the figure is FLIP; if it tilts down the rotary axis, it is NONFLIP.

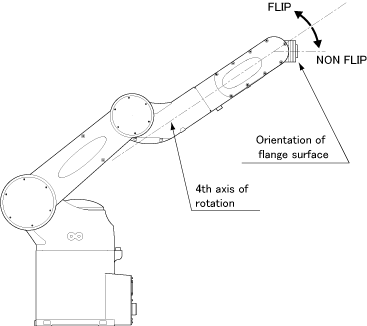

Boundary Between FLIP and NONFLIP for LEFTY

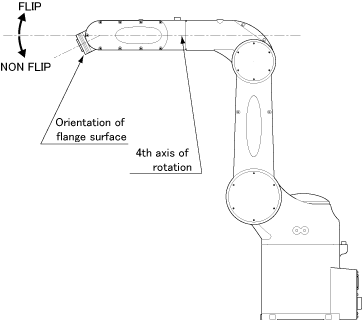

Boundary Between FLIP and NONFLIP for RIGHTY
