HM/HMS Series (Standard type)
|

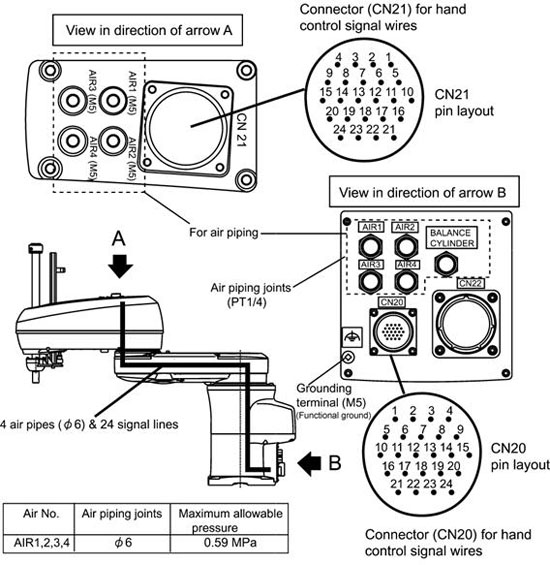

Note 1: Pins #1 to #24 on CN21 and those on CN20 are connected with each other. The maximum rated current per line is 1A. Note 2: Use the attached connector set for CN20 and CN21. |
| Connector set part No. | Part No. | Model and name | Appearance |
|---|---|---|---|
410889-0090 |
410877-0170 (for CN20) |
SRCN6A25-24S (Round connector) (Japan Aviation Electronics Industry Ltd.) |  |
410877-0450 (for CN21) |
JMSP2524M (Straight plug) (DDK Electronics, Inc.) |  |
