Semiyearly Inspections
Lubrication
Apply the specified grease to the whole Z-axis shaft as shown below every six months.
Lubrication Points and Lubricants (HM/HMS series)
| No. | Lubrication points | Lubricant type | Lubricant amount | Remarks |
|---|---|---|---|---|
| 1 | Z-axis shaft | Epinoc AP1 | 2 to 3 cc | Apply the grease to the whole Z-axis shaft. |
| 2 | Z-axis rack | Epinoc AP1 | 2 to 3 cc | Apply the grease to the rack and gear of the Z-axis shaft. |
| 3 | Z-axis air balance cylinder shaft | Epinoc AP1 | 2 to 3 cc | Apply the grease to the whole cylinder shaft. |

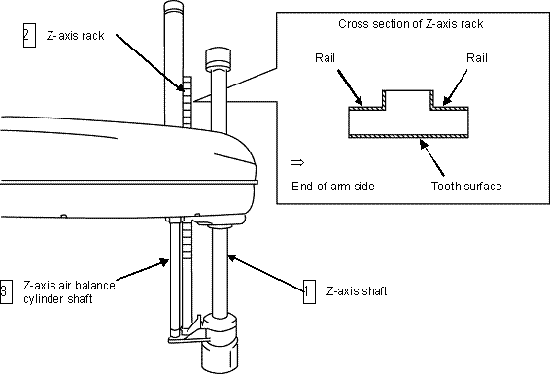

<Example of HM> |
||||
When applying grease to the dust- & splash-proof type, you need to pull down the upper bellow on the Z-axis shaft.
