HS/HSS (Standard type)
|
|
||
| Air No. | Air piping joint | Maximum allowable pressure |
| AIR 1, 2 | φ4, PT1/8 | 0.59 MPa |
|
AIR 3, 4 |
φ6, PT1/4 | |
|

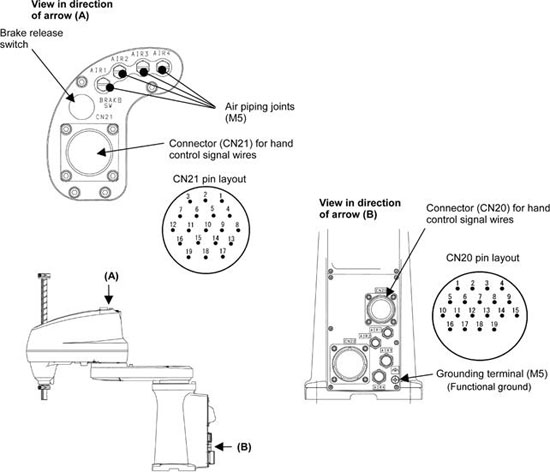

Note 1: Pins #1 to #19 on CN21 and those on CN20 are connected with each other. The maximum rated current per line is 1A. Note 2: Use the attached connector set for CN20 and CN21. |
||
| Connector set part No. | Part No. | Model and name | Appearance |
|---|---|---|---|
|
410889-0070 |
410877-0170 (for CN20) |
SRCN6A25-24S (Round connector) (Japan Aviation Electronics Industry Ltd.) |
 |
|
410877-0420 (for CN21) |
JMSP2119M (Straight plug) (DDK Electronics, Inc.) |
 |
