Connecting Robot Controller
Controller and robot are connected by the motor & encoder cable.
Make sure that the power of controller is OFF before starting settings.
Connection in Robot Side
1

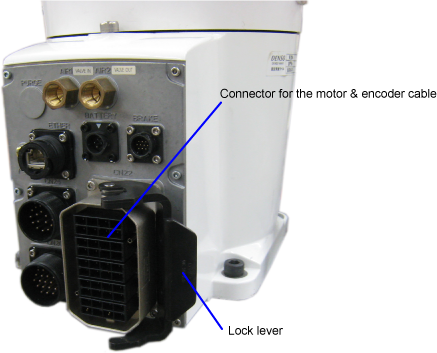

Check and match the right and left side of connector of the motor & encoder cable and connector of the robot.
A lock lever side of the motor & encoder cable has letters on the surface.
The connector cannot be plugged in if it connected wrong way.
2

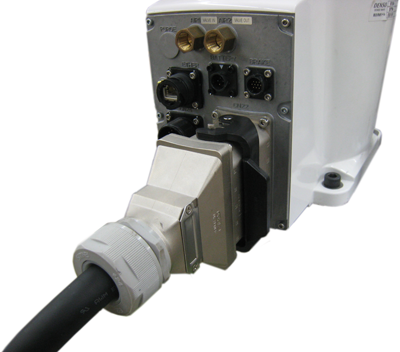

Plug the connector of the motor & encoder cable in the connector of the robot straightway then lock with the lock lever.
A connector for the motor & encoder cable of the bottom connector panel type robot locates on the bottom surface of the robot.
Connection in Controller Side
Refer to "Connecting Robot" of RC8 CONTROLLER MANUAL.
