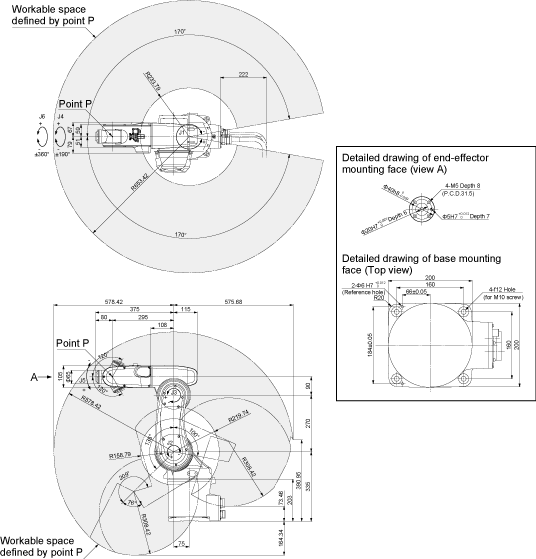

VS-6556-BW (Dust- & splash-proof type with brakes)
|
|
Please refer to this if the figure is not clear.（PDF：302KB）
