VS-6556/6577 SERIES USER'S MANUAL
Specifications of the Robot Unit
Stopping Time and Distance (Angle) at an Emergency Stop
VS-6577 Series
<< Prev
Next >>
SAFETY PRECAUTIONS
ROBOTS
START UP MANUAL
CONTROLLER & I/O
OPERATION GUIDE
PROGRAMMING
WINCAPSIII GUIDE
OPTION
ERROR CODE
PARAMETER LIST
OTHERS
VS-6577 Series

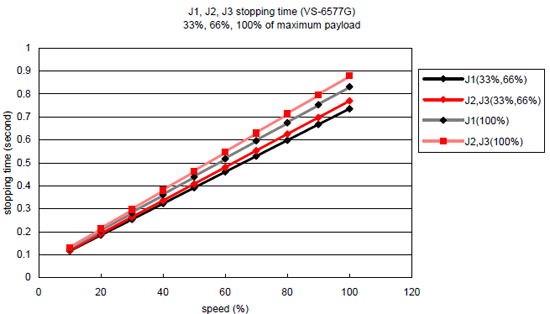

J1, J2, J3 Stopping Time vs. Speed at an Emergency Stop (VS-6577 series)

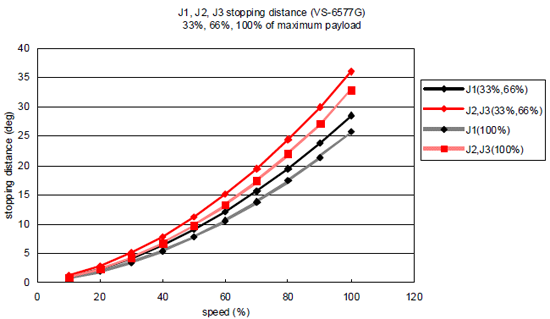

J1, J2, J3 Stopping Distance vs. Speed at an Emergency Stop (VS-6577 series)
