Encoder HUB

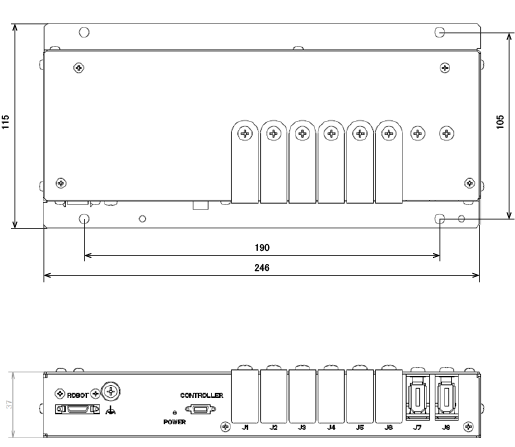

This section describes the appearance diagram and the external dimensions.

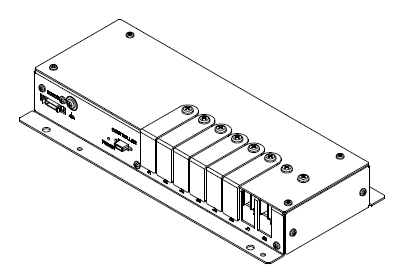

Appearance Diagram

Connect the port according to the axis number.
Please make sure not to apply excessive pressure on cables.
Make sure to connect the grounding of the enclosure so as to minimize the noise effect.
Be sure to prevent dusts or foreign objects from getting in the connection ports on the encoder HUB when connector hook-ups. Ingress of foreign objects may damage the encoder HUB. Do not use the encoder HUB without hooking up connectors.
When you install an encoder hub, be sure to fix it to the production facilities by using four screw holes, which you can see the corners of the encoder hub, so that it will not be affected by vibrations of surroundings.
The encoder hub is not evaluated in the condition of being installed in a controller.
