Configuration

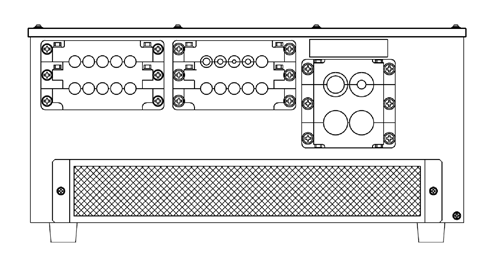

The controller protective box and its accessories are shown below.
Controller Protective Box
Accessories
| Parts name | Quantity |
|---|---|
| Rubber packing set for Cable Multi-outlet Plate B, C | See below |
| FG harness | 1 |
| Ring terminal | 10 (inc. 2 spares) |
| Insulating tube | 8 |
| Rest bracket (Large) | 1 |
| Rest bracket (Small) | 1 |
Rubber Packing Set for Cable Multi-outlet Plate B, C
| Name printed | Application cable dia. | Shape | No. of sets |
|---|---|---|---|
| P0 | - |  |
2 |
| P4 | φ4-φ6 |  |
1 |
| P6 | φ6-φ8 | |
1 |
| P8 | φ8-φ10 | |
2 |
| P10 | φ10-φ12 | |
1 |
Option
| Parts name | Parts number |
|---|---|
| Rubber packing set for extended-joint for RC8 controller protective box | 410169-2710 |
| Caster set for RC8 controller protective box | 410169-2720 |
