Sheet of Direction Indicator Labels

A sheet of direction indicator labels comes bundled with the robot unit. Affix the direction indicator labels on the robot unit where they are easy to see according to Correspondence between axes and labels and Motion directions.

Sheet of Direction Indicator Labels

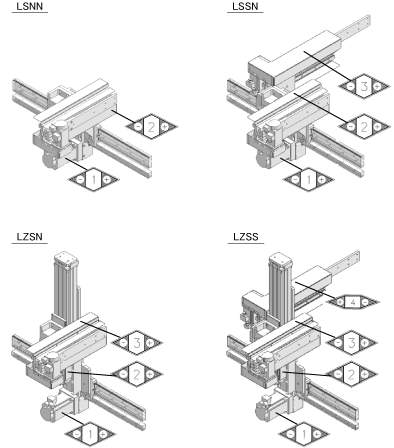

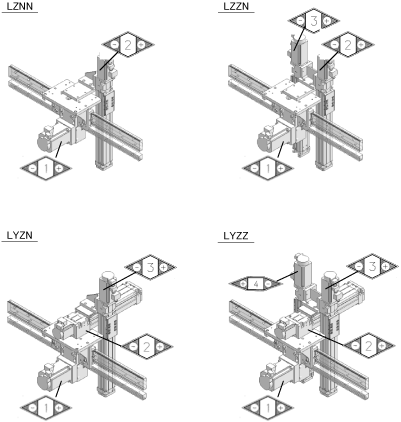

Correspondence Between Axes and Labels

LZNN, LZZN, LYZN, and LYZZ

LSNN, LSSN, LZSN, and LZSS

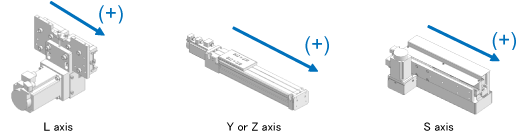

Motion Direction
