LED Display

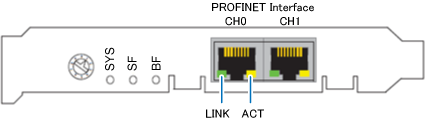

• The front panel of PROFINET IO Device board





Name	Description
SYS	Turn on when the PROFINET IO Device board is activated.
SF	Turn off during the PROFINET IO Device board is in motion.
BF	Turn off when the connection is established.
LINK	Turn on when the PROFINET is connected with other PROFINET devices.
ACT	Blink when transmits/receives PROFINET frame.



• PROFINET Interface

RJ45 female　connector. Use either CH0 or CH1.
