Creating Tool Coordinates

You may create tool coordinates by entering necessary data from the smart TP or by writing TOOL command in your program.

The figure below shows the necessary data to be set for creating tool coordinates.

The offset distance and the rotation angles should be specified, based on the mechanical interface coordinates. The rotation order should be RZ, RY, and RX.

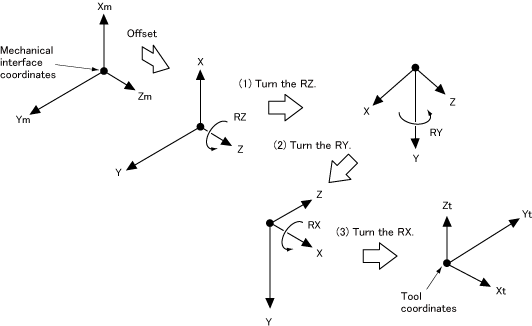

The following figure shows the rotation order when specifying tool coordinates.
