Standard Robot Set and Accompanied Parts
Robot Unit and Related Parts

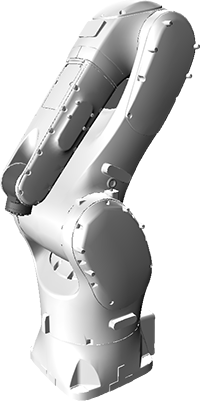

Robot Unit

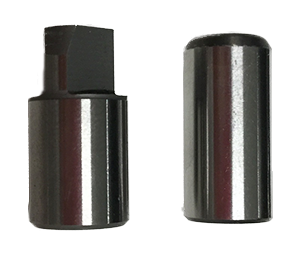

Dowel pin, Diamond-shaped pin
| Type | Part No. |
|---|---|
| Dowel pin | 414880-033* |
| Diamond-shaped pin | 414880-034* |
Signal Line Connector Kit (CN20/CN21/Ethernet)
For Standard Type

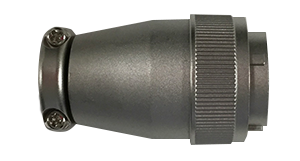

Connector for CN20
|
 |
||

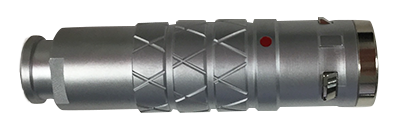

Connector for CN21
|
 |
||
| Cable for ETHER1,2 connector Length: 2ｍ Outer diameter: 7mm (PDF:3,602KB)
|
 |
For Protected Type or Clean Room Type
Connector for CN20
|
 |
||
Connector for CN21
|
|
||
| Cable for ETHER1,2 connector Length: 2ｍ Outer diameter: 7mm (PDF:3,602KB)
|
|
||

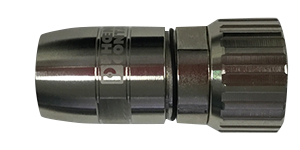

Ethernet Waterproof Connector
|
 |

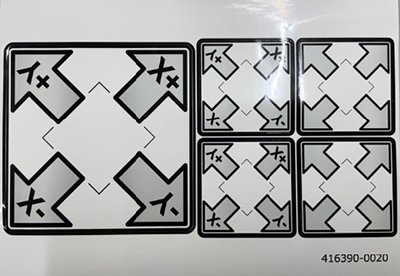

XY Direction Indicator Label
| Part No. |
|---|
| 416390-002* |

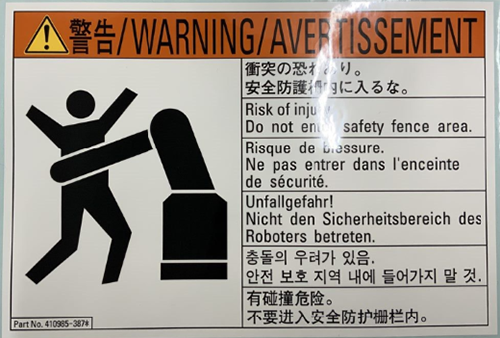

Warning Label
| Part No. |
|---|
| 410985-387* |
Grease Nipple
| Part No. |
|---|
| 414880-049* |
Robot Controller and Related Parts

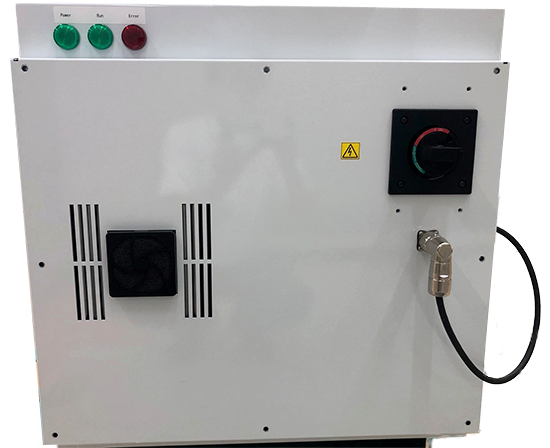

Robot Controller
User Power Internal Power Source Connector
| Part No. |
|---|
| 416137-004* |
Pendantless Connector
| Part No. |
|---|
| 414880-039* |
Grommet Set
| Type | Part No. |
|---|---|
| Φ7-8 | 416136-010* |
| Φ8-9 | 416136-011* |
| Φ11-12 | 416136-012* |
