Brake Release Unit
This unit releases a brake on each axis. The wiring of this unit is directly connected to the brake release signal of each axis. The cable length is 4 m, 8 m or 12 m.

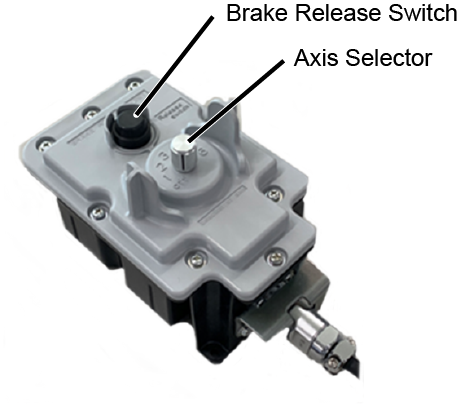

While the brake release switch is held down, the brake of the axis selected by the axis selector is released.
Do not turn the axis selector with the brake release switch being held down.
Ingress Protection code rating; IP54. The battery is sold separately. Three of mounting bolts (M4*12) are included. Use these bolts to fix the robot to facilities.
The arm of an axis with its brake released may fall. Before releasing the brake, take appropriate measures such as supporting the arm with a crane.
- Turn off the controller before using the brake release unit.
- When using the brake release unit, ensure that the emergency stop button can be pressed immediately after an imminent danger is observed. For example, carry the smart TP with you.
- Do not move the 2nd and 3rd axis with brake released to a position that comes into contact with mechanical stoppers. Mechanical stoppers may be damaged.

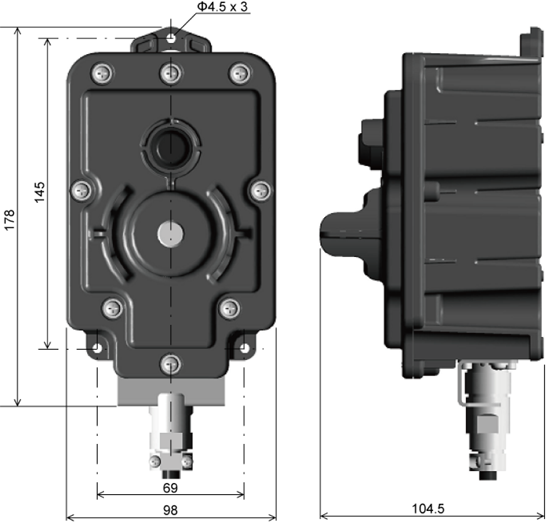

External Dimensions and Location of Mounting Holes
Warning Label
A warning label comes with the brake release unit. When installing the unit on the facility, make sure to label in a conspicuous position in the vicinity of the brake release unit.
