Protection Cover for Connector Panel

This is a cover to protect connectors of the connector panel (distribution panel) on the robot base.

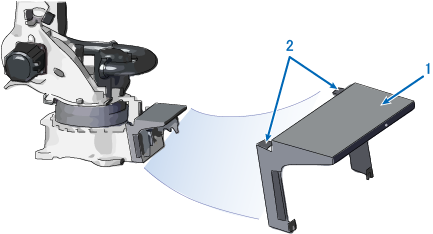

Components

1. Protection cover for connector panel
2. Hexagon socket-head bolt M16 × 12mm, strength class: 8.8 (quantity : 2)

Mounting Procedure

1

Remove two lower bolts (B).

2

Mount the protection cover for connector panel (A) to the robot base.

3

Tighten two fixing bolts (B) with tightening torque 10.4 Nm.

Precautions

Do not get on the cover.
If a worker gets on the cover, it may be damaged and he or she could be tumbled.
