Attachment for Forklift

This is an optional attachment to support the transport of the VLA series robot by the forklift.

Components

• Attachment for forklift (quantity: 2)
• Hexagon socket-head bolt M20 × 40, strength class: 12.9 (quantity : 4)

Transport Position of Robot Unit

Before transportation, set the robot unit in a well-balanced transport position.

The table below shows a relatively well-balanced posture to be taken by the VLA series robot when transported.

Mounting Procedure

1

Place the robot on the floor.

2

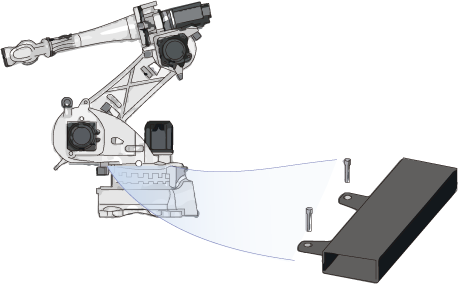

Mount the attachment for forklift (1) on the robot base part.

3

Tighten two fixing bolts (2) with the following tightening torque.

4

Also mount it to the opposite side in the same way.

This completes mounting of the attachment for forklift.
