Power Transformer Box
Specifications
| Mass | About 86 kg |
|---|---|
| Type | Three-phase Y (primary) -Δ (secondary) |
| Capacity | 4.5 KVA |
| Primary voltage (the range of the primary voltage) |
400 V (400 V to 480 V) |
| Frequency | 50 / 60 Hz |
| Secondary voltage / Electric current | 200 V / 13.0 A |

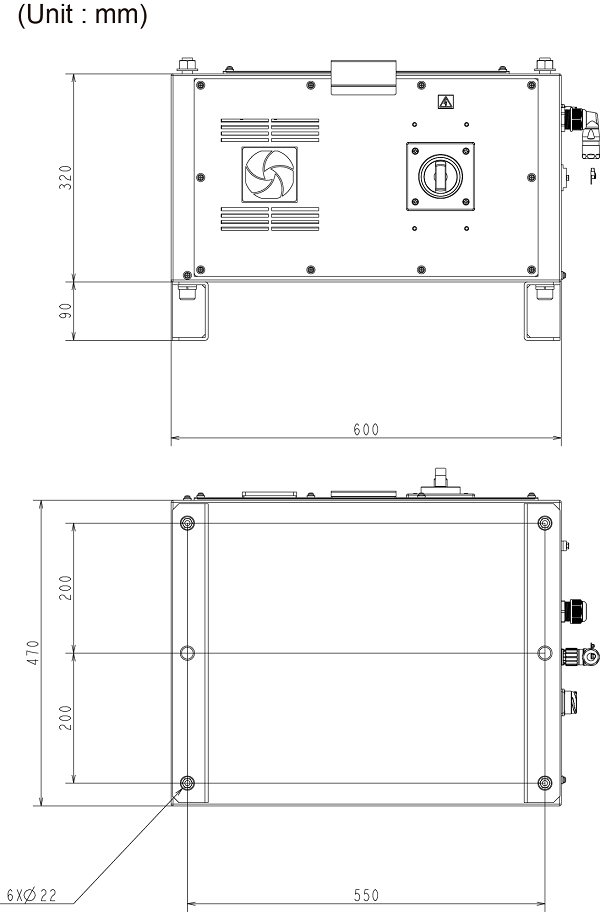

Outer Dimensions
