Attachment for Forklift
This is an optional attachment to support the transport of the VMB series robot by the forklift.
After use, remove the attachment from the robot unit.
Components
- Attachment for forklift (quantity: 2)
- Hexagon socket-head bolts M12×30, strength class: 12.9 (quantity: 6)
Transport Position of Robot Unit
Before transportation, set the robot unit in a well-balanced transport position.
The following table shows joint angles for keeping the robot unit in a well-balanced position when transporting for each variation.
VMB-2515
| Joint number | Angle [deg] |
|---|---|
| J1 | 0° |
| J2 | -13° |
| J3 | 170° |
| J4 | 0° |
| J5 | 0° |
| J6 | 0° |
VMB-2518
| Joint number | Angle [deg] |
|---|---|
| J1 | 0° |
| J2 | -10° |
| J3 | 170° |
| J4 | 0° |
| J5 | 0° |
| J6 | 0° |

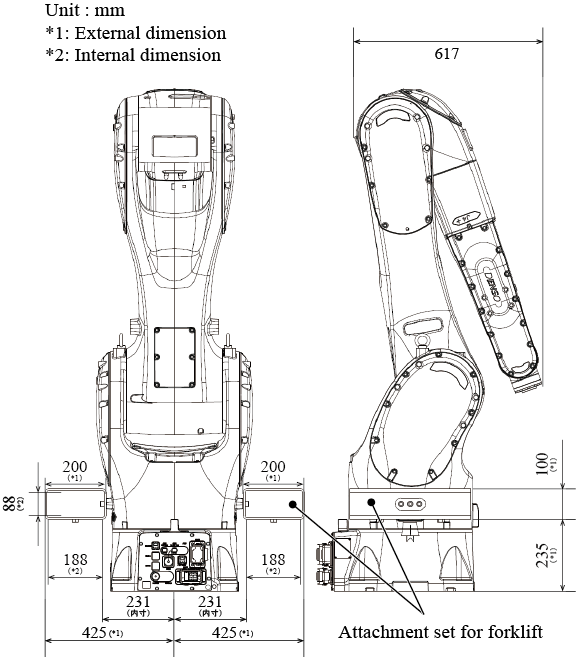

Dimensions and Installation Diagram
* External dimension: external dimensions of the attachments, Internal dimension: internal dimensions of the attachments
* Thickness of the attachments (steel pipe): 6 mm
| Tightening torque | 42 ±８Nｍ |
|---|
Lifting Label
When lifting the robot unit with a forklift, refer to the label below.
Location of the Label
