Warning and Caution Labels

The robot unit has warning and caution labels pasted as shown below. They alert the user to the dangers of the areas on which they are pasted. Be sure to observe the instructions printed on those labels.

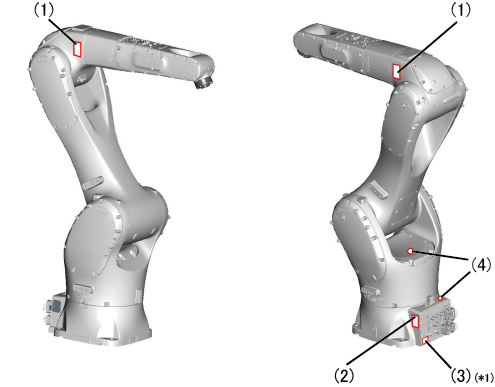

Location of the Label

*1: For the old model of VMB Series robot, the design and location of the label are different. For the old model, refer to "here".

Details of Labels

(1) Label

Contact with the robot unit that is in motion can cause serious injuries. Never enter the robot's motion space when the robot is in motion or the motor power is on.

When you need to enter the robot's motion space for recovery from robot failures, be sure to cut the power to the robot motors by activating the emergency stop device or the like.

(2) Label

When transporting the robot unit, lift it with a crane as shown below.

(3) Label

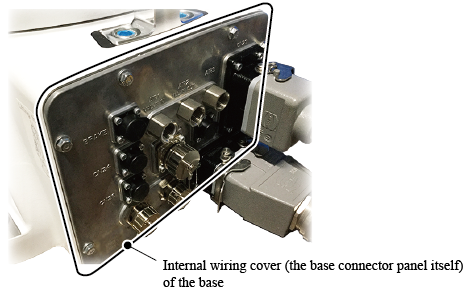

To avoid the risk of electric shock, do not remove the internal wiring cover (which refers to the base connector panel itself) of the base.

(*1)

*1: For the old model of VMB Series robot, the design and location of the label are different. For the old model, refer to "here".

(4) Label

Do not put your feet on or climb the robot. Such actions may not only affect the robot negatively but also lead to risk of injury if an operator slip off the robot.
