I/O Expansion Options

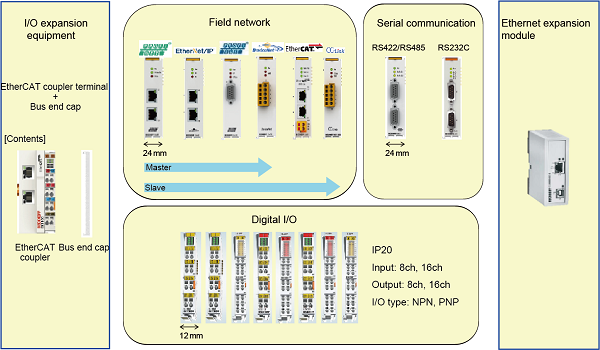

I/O expansion options are built-in in the controller or installed by external connection.

Type Item

Part No.
I/O expansion equipment EtherCAT coupler terminal + Bus end cap set
* If you choose built-in I/O expansion in the controller, you must order the set.		 414801-017*
EtherCAT coupler terminal 414872-004*
Bus end cap 414872-029*
Field network (width: 24mm)
* Available only for built-in in the controller.		 EtherCAT bridge terminal
  • Built-in with License : 414801-037*
  • Single with License : 414872-042*
  • Single : 414872-013*
  • License : 414860-044*
PROFINET RT device terminal
  • Built-in with License : 414801-038*
  • Single with License : 414872-037*
  • Single : 414801-006*
  • License : 414860-009*
EtherNet/IP slave terminal
  • Built-in with License : 414801-039*
  • Single with License : 414872-038*
  • Single : 414801-007*
  • License : 414860-010*
PROFIBUS slave terminal
  • Built-in with License : 414801-040*
  • Single with License : 414872-039*
  • Single : 414801-008*
  • License : 414860-110*
DeviceNet slave terminal
  • Built-in with License : 414801-041*
  • Single with License : 414872-040*
  • Single : 414801-009*
  • License : 414860-120*
Serial communication (width: 24mm) RS232C 2ch terminal
  • Built-in : 414801-022*
  • Single : 414872-015*
RS422/RS485 2ch terminal
  • Built-in : 414801-023*
  • Single : 414872-014*
Digital input/output (width: 12mm) Input terminal PNP, 8ch, 10us, IP20
  • Built-in : 414801-024*
  • Single : 414872-016*
Input terminal PNP, 16ch, 3ms, IP20
  • Built-in : 414801-025*
  • Single : 414872-020*
Output terminal PNP, 8ch, 0.5A, IP20
  • Built-in : 414801-026*
  • Single : 414872-017*
Output terminal PNP, 16ch, 0.5A, IP20
  • Built-in : 414801-027*
  • Single : 414872-021*
Input terminal NPN, 8ch, 10us, IP20
  • Built-in : 414801-028*
  • Single : 414872-018*
Input terminal NPN, 16ch, 3ms, IP20
  • Built-in : 414801-019*
  • Single : 414872-022*
Output terminal NPN, 8ch, 0.5A, IP20
  • Built-in : 414801-030*
  • Single : 414872-019*
Output terminal NPN, 16ch, 0.5A, IP20
  • Built-in : 414801-031*
  • Single : 414872-023*

Ethernet expansion module

 Ethernet expansion module 414801-011*

* For I/O expansion of built-in in the controller, you can install maximum of 72mm width.

For built-in options, products will be shipped with mounted to the controller.

Precaution when Using Digital Input/Output Terminals

When using digital input/output terminals, it is necessary to install external power source (24V DC) to Input for Power Contacts of the EtherCAT coupler terminal and to supply the power as shown in the figure below.

Power Contacts : max.24VDC,10A
