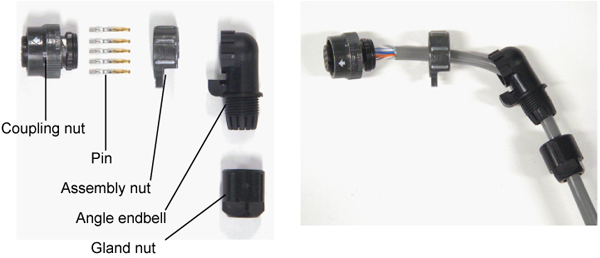

Assembling procedure for CN21 connector (reference)

1

Pass the wires (o6.5-8.0) through the gland nut, angle endbell, and assembly nut.

2

Solder the wires onto the pins.

3

Insert the pins into the coupling nut.

4

Select the orientation of the angle endbell and assemble the related parts.

5

Lock the assembled parts with the coupling nut.
