VS SERIES USER'S MANUAL
Specifications of the Robot Unit

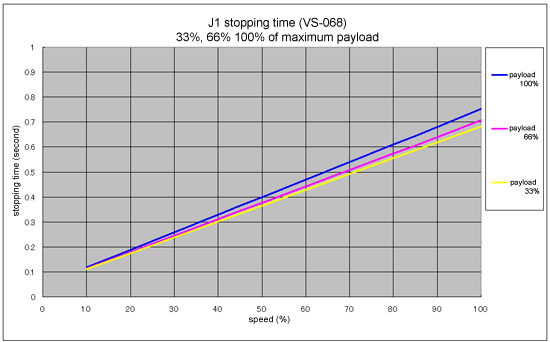

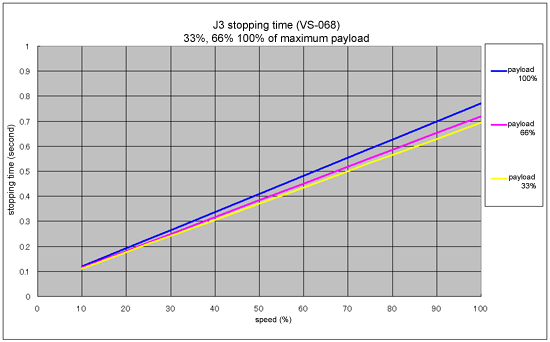

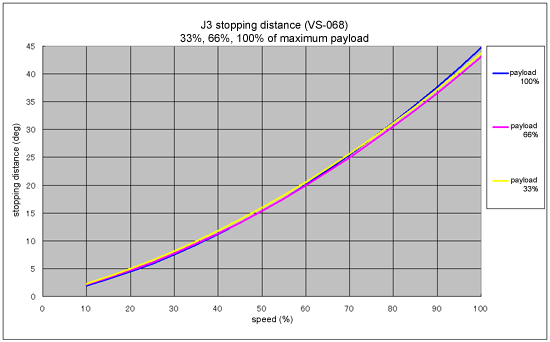

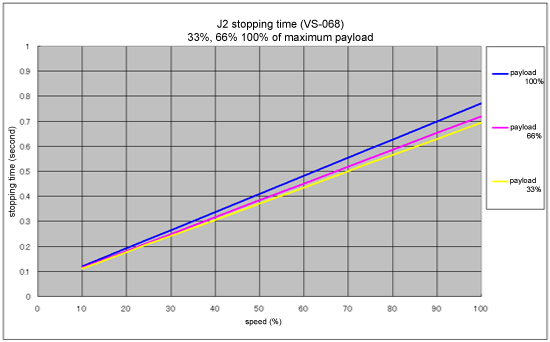

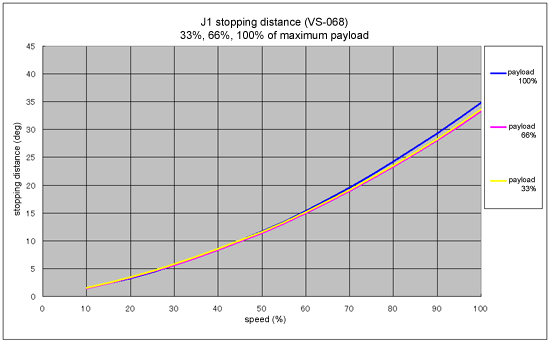

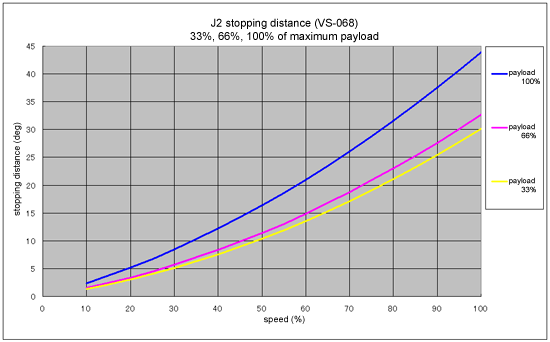

Stopping Time and Distance (Angle) at an Emergency Stop
VS-068
