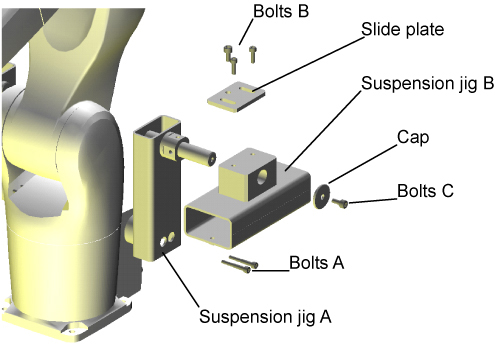

Jig Examples for Overhead-Mount and Wall-Mount
- Reference Drawing of Suspension jig A
- Reference Drawing of Suspension jig B
-
(Note: Produce these jigs in size suitable for facilities to be supported.)
- Reference Drawing of Slide plate
- Reference Drawing of Cap
- Bolts A
Hex. socket-head bolts M8 x 55 (Strength class : 12.9)
Tightening torque: 20 +/- 4 Nm - Bolts B
Hex. socket-head bolts M10 x 20 (Strength class : 12.9)
Tightening torque: 70 +/- 14 Nm - Bolts C
Hex. socket-head bolts M10 x 20 (Strength class : 12.9)
Tightening torque: 36 +/- 14 Nm
