PNP-type I/O
Input Circuit When the Internal Power Source is Used (PNP)

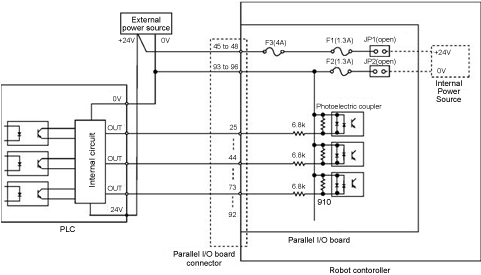

Input Circuit When an External Power Source is Used (PNP)
