Displaying the Setting Menu
Operation path : Basic screen - [F6 Setting]
Display the setting menu.

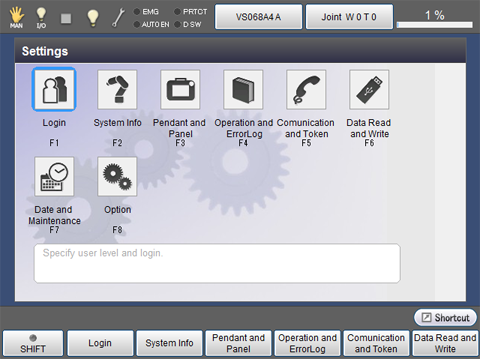

Press [F6 Setting] to display the following [Settings] window.
| Available function keys | |
|---|---|
| [F1 Login] | Switch user level. |
| [F2 System Info] | Display information of controller including software version and running time. |
| [F3 Pendant and Panel] | Perform settings associated with display including language and character size, and set the panel. |
| [F4 Operation and Error Log] | Display contents of operation and error logs. |
| [F5 Communication and Token] | Perform settings associated with communication including IP Address setting, and set the executable token. |
| [F6 Data Read and Write] | Read and write data to USB. |
| [F7 Date and Maintenance] | Set date and clock, and the next battery and robot maintenance dates. |
| [F8 Option] | Add optional functions. |
