Names and Rotation Direction of Robot Unit Components
The figure below shows the names of the components of the robot unit and the rotation direction of each axis.

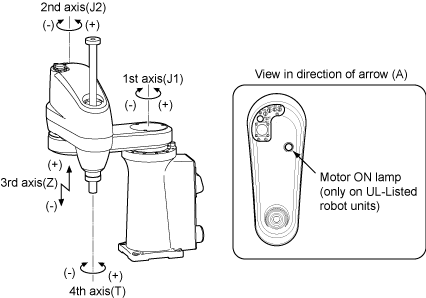

Robot Unit Components and Rotation Direction (HS series)
The UL-Listed robot unit has the motor ON lamp on the 2nd arm.
 |
Robot Unit Components and Rotation Direction (HSS series)
 |
