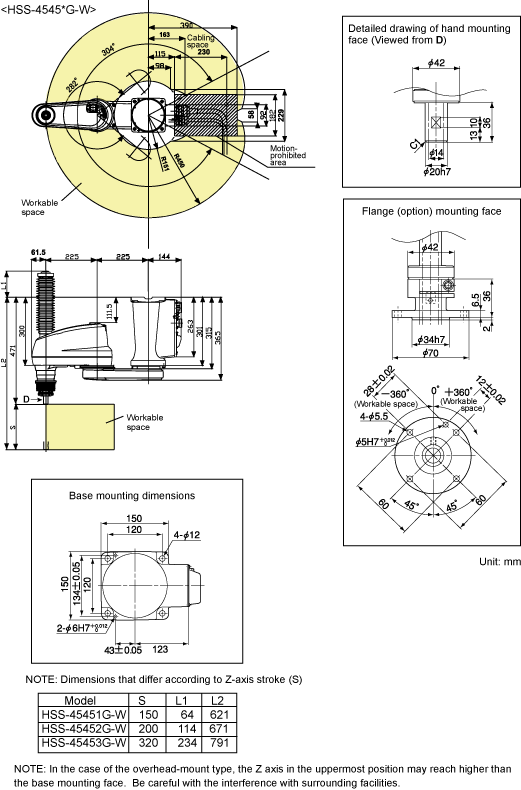

HSS-4545*-W; Arm Length 450 mm, Overhead-mount, Dust- & Splash-proof Type
 |
Please refer to this if the figure is not clear.（PDF：783KB）
HOME- ROBOTS
- HS SERIES USER'S MANUAL
- Specifications of the Robot Unit
- Outer Dimensions and Workable Space of the Robot Unit
- HSS-4545*-W; Arm Length 450 mm, Overhead-mount, Dust- & Splash-proof Type
