XR SERIES USER'S MANUAL
Specifications of the Robot Unit

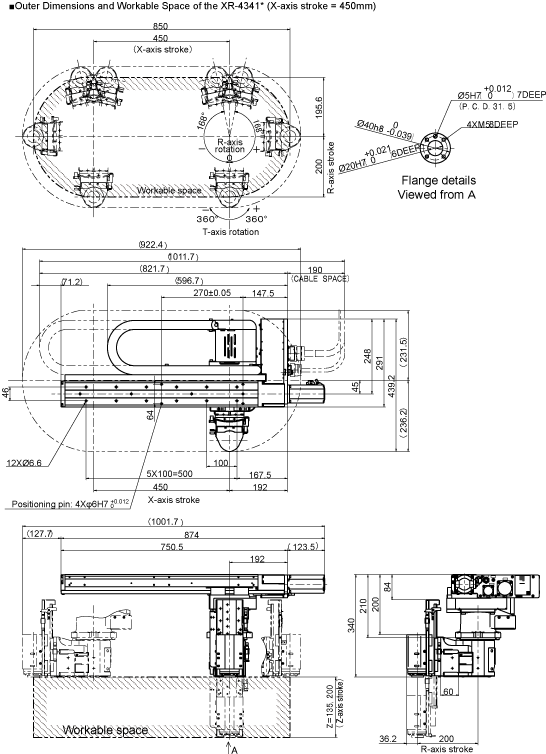

Outer Dimensions and Workable Space of the Robot Unit
XR-4341*
<< Prev
Next >>
SAFETY PRECAUTIONS
ROBOTS
START UP MANUAL
CONTROLLER & I/O
OPERATION GUIDE
PROGRAMMING
WINCAPSIII GUIDE
OPTION
ERROR CODE
PARAMETER LIST
OTHERS
XR-4341*
Please refer to this if the figure is not clear.（
PDF：688KB
）
