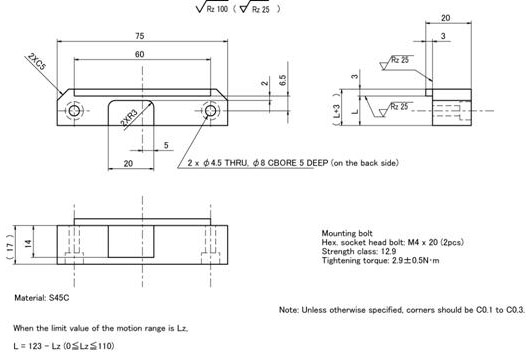

Drawings of the 3rd axis (Z-axis) Mechanical Stopper for Negative Direction (XR Series, Z-axis stroke: 135 mm)
HOME- ROBOTS
- XR SERIES USER'S MANUAL
- Adjustment
- 3rd axis (Z-axis) Mechanical End Change
- Changing the Z-axis Stroke of 135 mm Mechanical Ends
- Drawings of the 3rd axis (Z-axis) Mechanical Stopper for Negative Direction (XR Series, Z-axis stroke: 135 mm)
