Encoder Hub Specification

This section describes the specifications of the encoder hub.

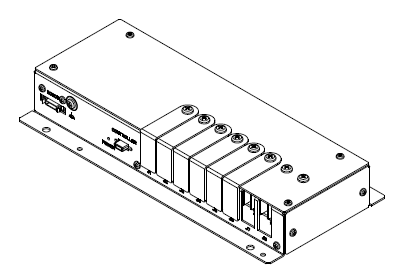

Appearance diagram

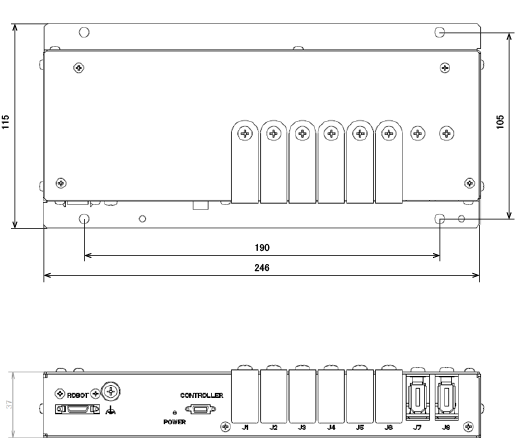

Dimensional outline drawing

Precaution on installation

• Connect the port according to the axis number.
• Please make sure not to apply excessive pressure on cables.
• Make sure to connect the grounding of the enclosure so as to minimize the noise effect.
• Be sure to prevent dusts or foreign objects from getting in the connection ports on the encoder hub when connector hook-ups. Ingress of foreign objects may damage the encoder hub. Do not use the encoder hub without hooking up connectors.
• When using the encoder hub, do not directly connect to the controller (RC8, MC8).
