Grounding of Robot Unit

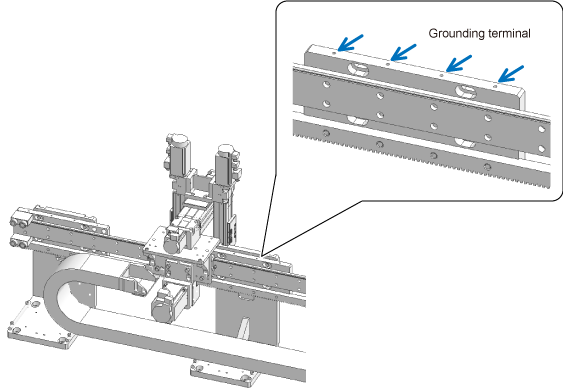

Ground the grounding terminal of the robot unit with a wire of 5.5 mm2 or more. There are four grounding terminals each on the upper part of a connecting plate.
Use a dedicated grounding wire and grounding electrode. Do not share them with any other electric power or power equipment such as a welder.
|
| Grounding terminal | Four each on the upper part of the connecting plate. Any of the connecting plates or screw holes may be used. |
|---|---|
| Screw | M4, nominal length of 8 mm or less |
| Grounding wire | 5.5 mm² or more |
