LED Display

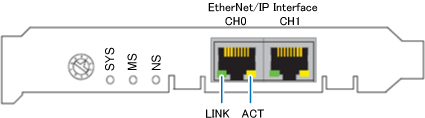

• The front panel of EtherNet/IP Adapte board



Name	Description
SYS	Lights when EtherNet/IP board is activated.
MS	Lights during EtherNet/IP board is in motion.
NS	Lights when the connection is established.
LINK	Lights when the Ethernet is connected to other Ethernet devices.
ACT	Blinks when transmits/receives Ethernet frame.



• EtherNet/IP Interface

RJ45 female　connector. Use either CH0 or CH1.
