ID : 4035

Error Log

Record error logs for the errors that are occurred in the COBOTTA.
The error history that was recorded in the logs in the past can be checked on the Remote TP/Virtual TP screen.

1

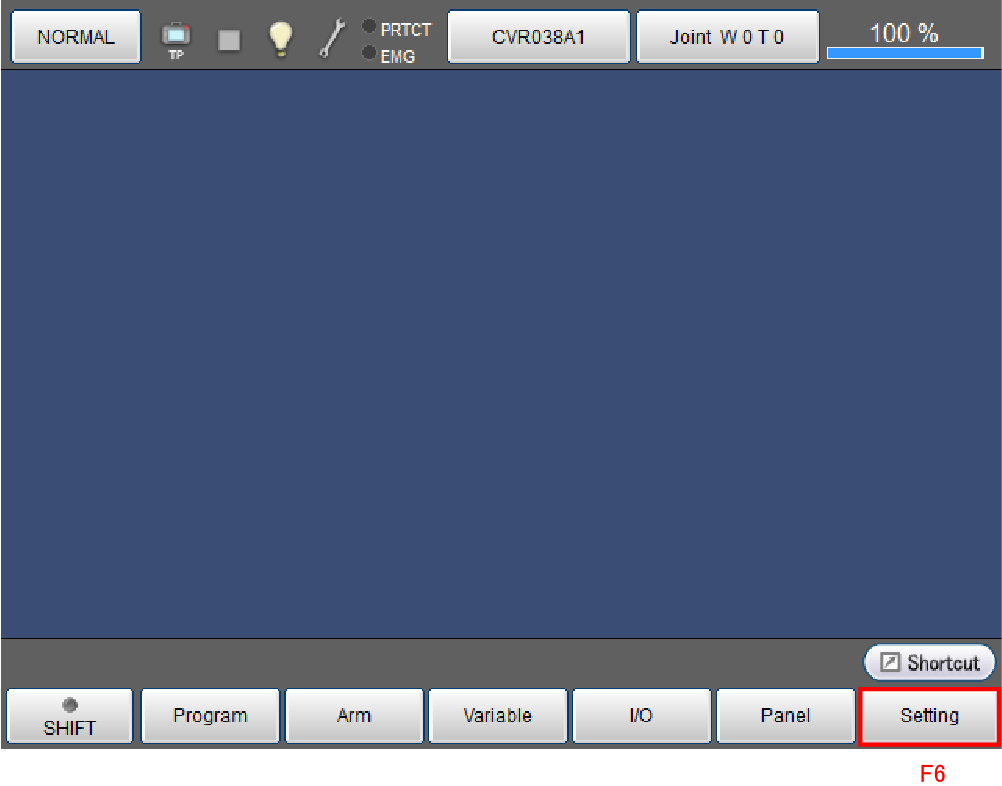

Press [F6 Setting].

2

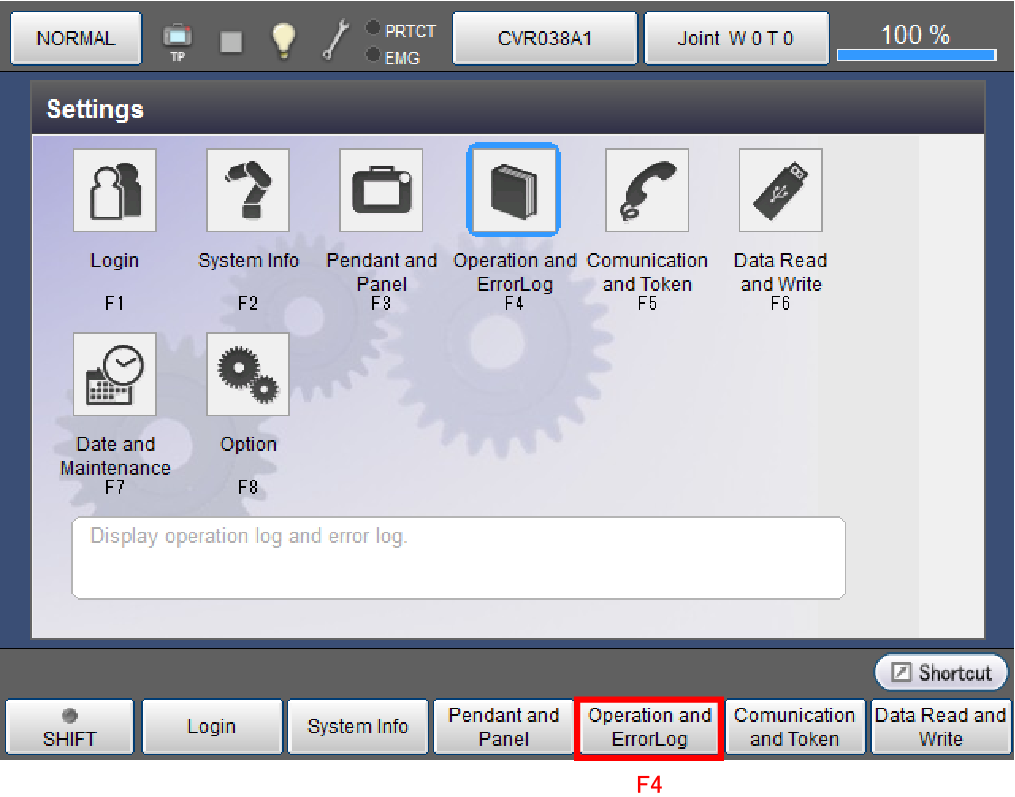

Press [F4 Operation and Error Log] button.

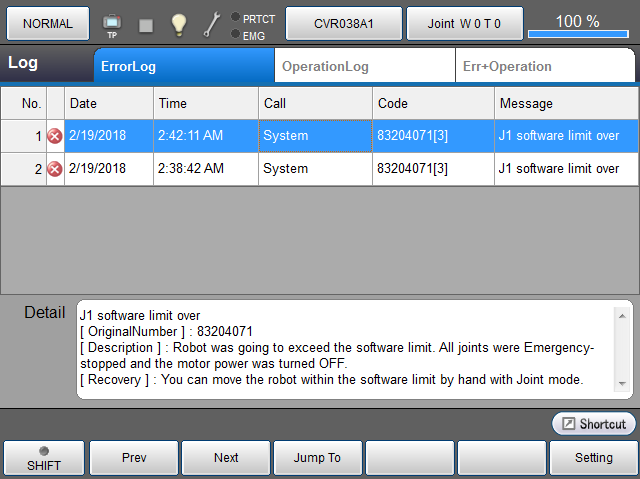

Error Log screen opens.
Press up and down cursor keys on the Remote TP/Virtual TP to move the cursor keys on the screen up and down, and check the log history.

Available function keys
[F1 Prev] Display the previous page of the currently displayed log information.
[F2 Next] Display the next page of the currently displayed log information.
[F3 Jump To]

Displays numeric keypad.

Enter the list No. of logs with numeric keypad, and press [OK] to display the log of the target list No.
[F6 Setting]

Display [Record error level setting] window.

Select error level to record as a log. Once pressed [OK], error log will be recorded at this set error level.
Record logs for all error levels when [Error level 0] is selected.
[F7 ClearLog]

Delete the registered log information.

Select the log information to delete, and press [OK] to delete the log.



ID : 4035
