External Speed Settings

This sets the percentage (%) of the maximum speed.

Refer to "Speed, acceleration, and deceleration settings" of Function Guide for details of the speed.

Operation Procedures

Set the external speed to 20% or less at the beginning of robot operation. If you are manually operating the robot at high speed while unfamiliar with operation, it involves the risk of accidental collision with surrounding equipment.
Even when the robot is operating controlled by a program, the external speed, acceleration, and deceleration can be set. However, changing any of these settings makes it effective immediately and causes the robot to suddenly alter the speed. Please note that this is dangerous.
1

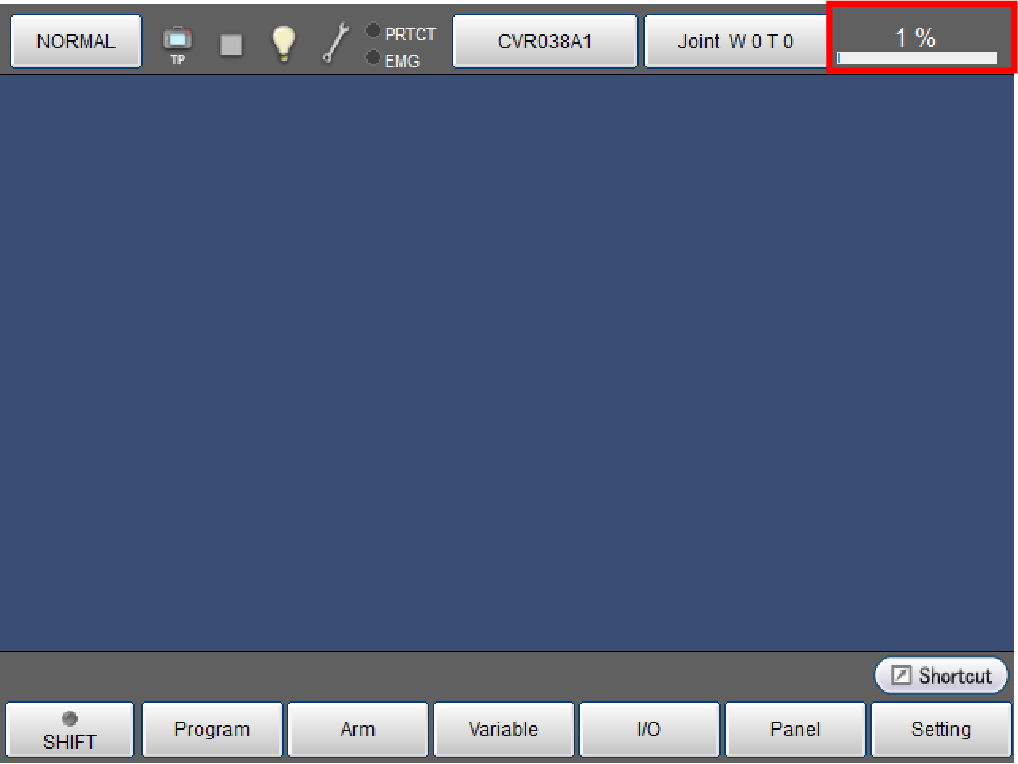

Press around the speed bar on the screen. The external speed settings screen shown in STEP 2 will be displayed.

2

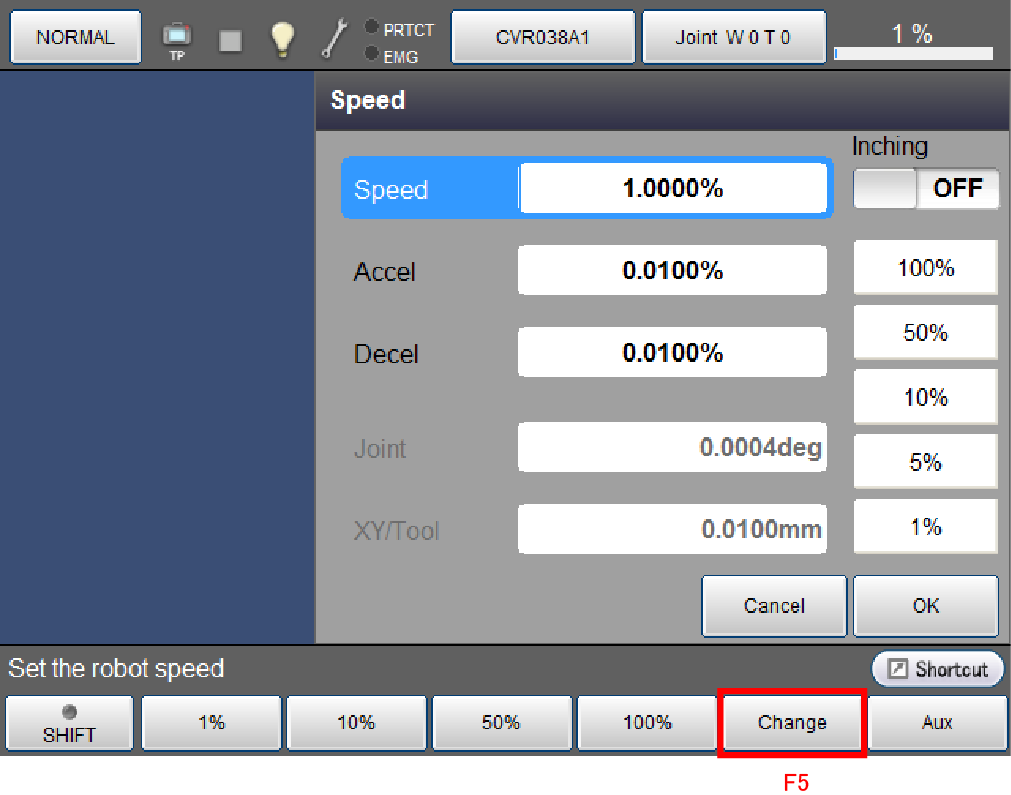

Check if the SPEED line is selected on the external speed settings screen, and press [F5 Change]. The numerical keypad shown in STEP 3 will be displayed.

  • One of values displayed in function keys can be directly entered using any of F1 to F4 keys instead of [F5 Change].
  • This value can be increased/decreased with an increment of 5% using right and left cursor keys.
3

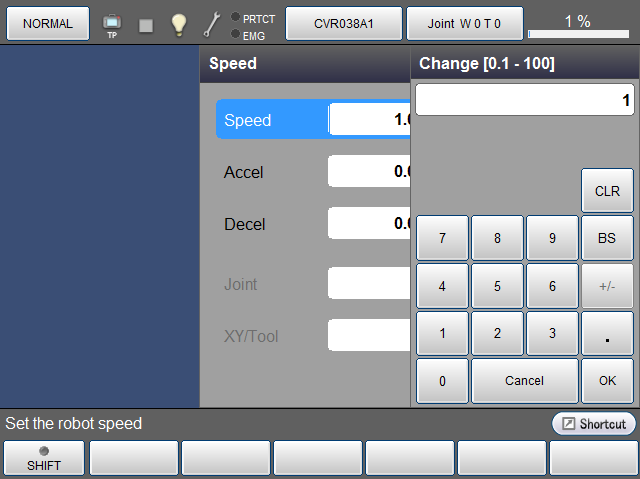

Use the numerical keypad displayed on the screen to enter any value. Press [CLR] or [BS] key to cancel the entered value. Check the entered value, and press [OK] key if it is correct.

The numerical keypad disappears, and the external speed is updated with the entered value as shown below. Press [Cancel] to cancel updating. The screen will return to normal.

4

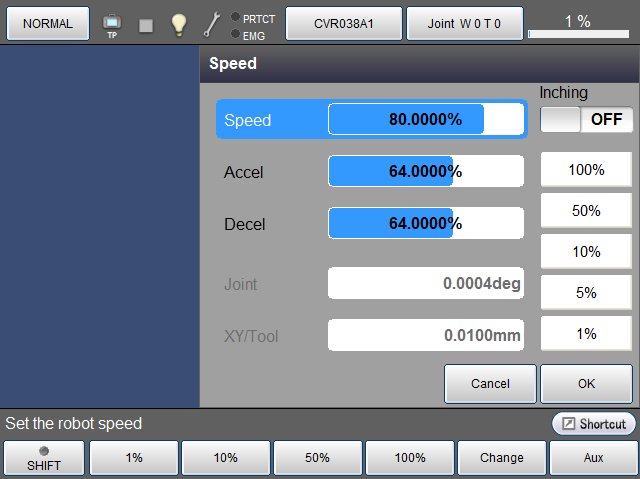

Check the automatically calculated acceleration that is displayed on the external speed settings screen.

  1. If this value is correct, skip the following procedures to go to STEP 6.

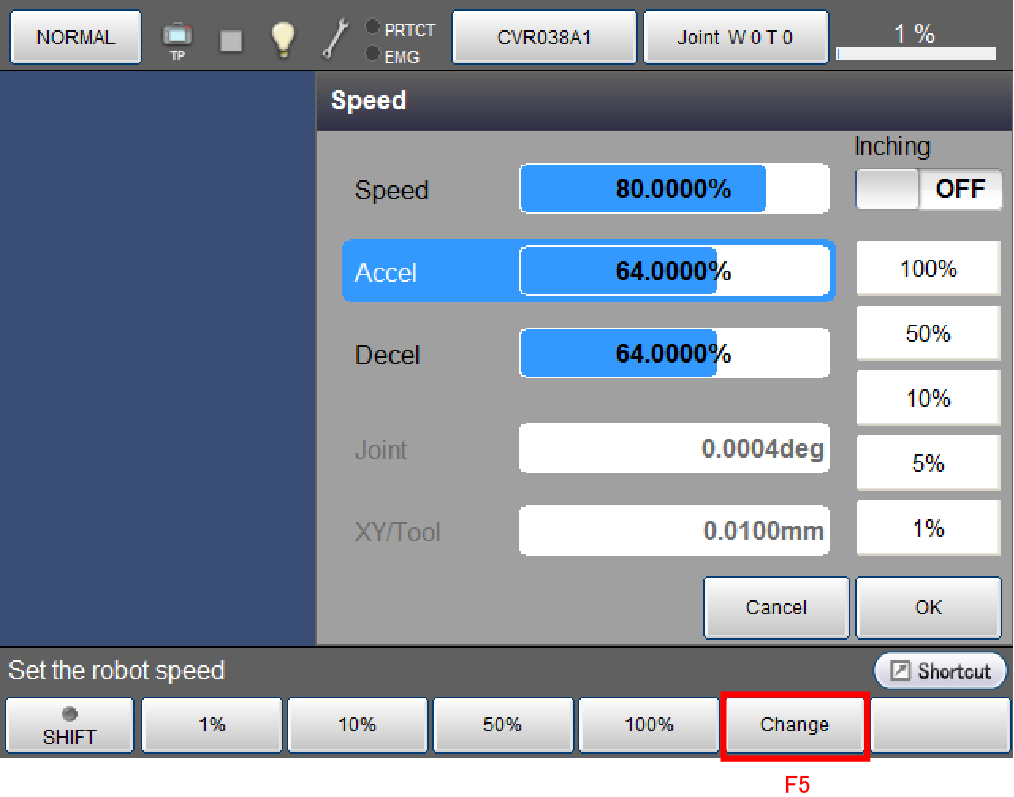

  2. To change these values manually, select the ACCEL line using the down cursor key, and press [F5 Change]. The numerical keypad shown in STEP 5 will be displayed.

  • One of values displayed in function keys can be directly entered using any of F1 to F4 keys instead of [F5 Change].
  • This value can be increased/decreased with an increment of 5% using right and left cursor keys.
5

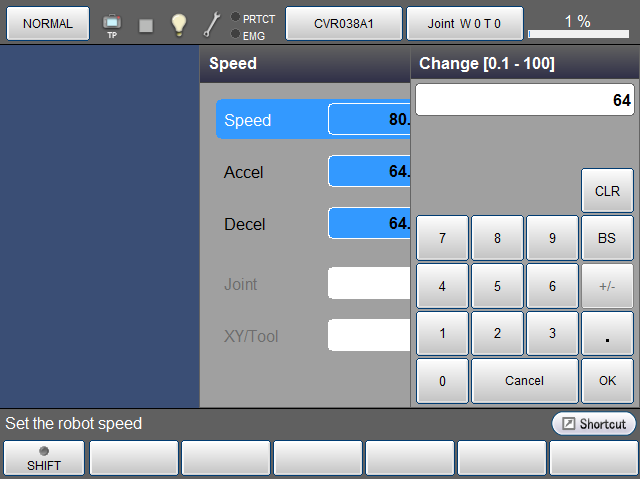

Use the numerical keypad displayed on the screen to enter any value. Press [CLR] or [BS] key to cancel the entered value. Check the entered value, and press [OK] key if it is correct.

The numerical keypad is disappeared, and the acceleration is updated with the entered value as shown below. Press [Cancel] to cancel updating. The screen will return to normal. If [Cancel] is pressed here, the external speed previously set will return to the original state.

6

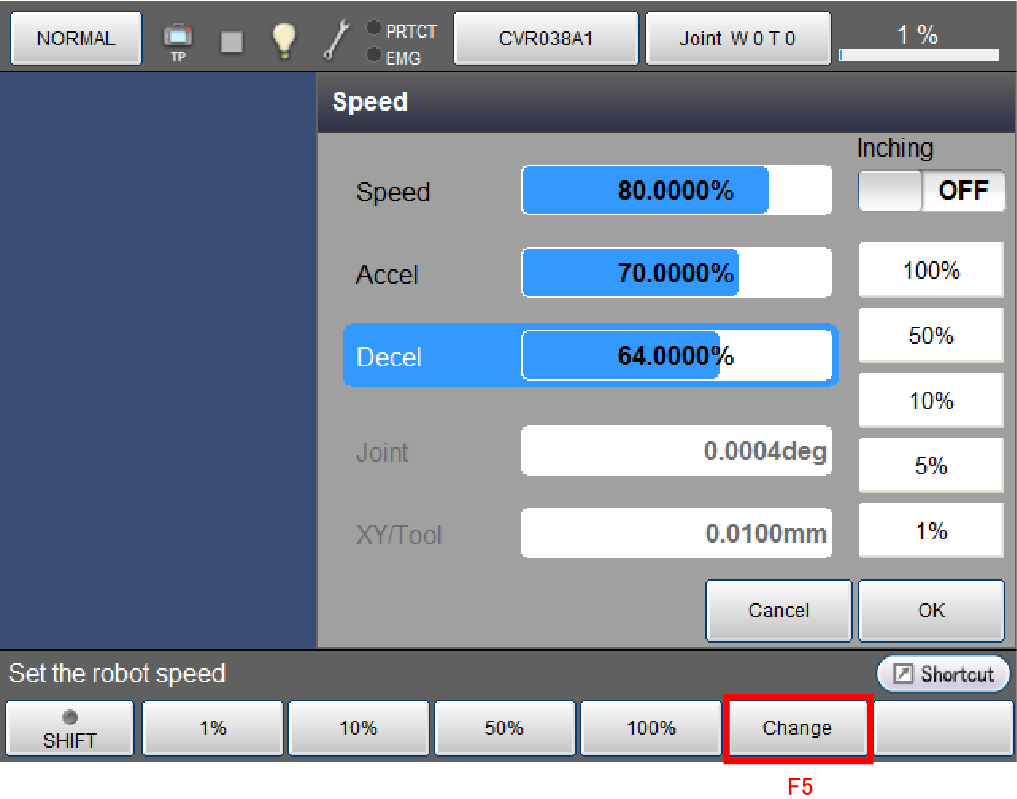

Check the automatically calculated deceleration that is displayed on the external speed settings screen.

  1. Press [OK] button to confirm this value if it is correct. Then, skip the following procedures to go to STEP 8.
  2. To change these values manually, select the ACCEL line using the down cursor key, and press [F5 Change]. The numerical keypad shown in STEP 7 will be displayed.

  • One of values displayed in function keys can be directly entered using any of F1 to F4 keys instead of [F5 Change].
  • This value can be increased/decreased with an increment of 5% using right and left cursor keys.
7

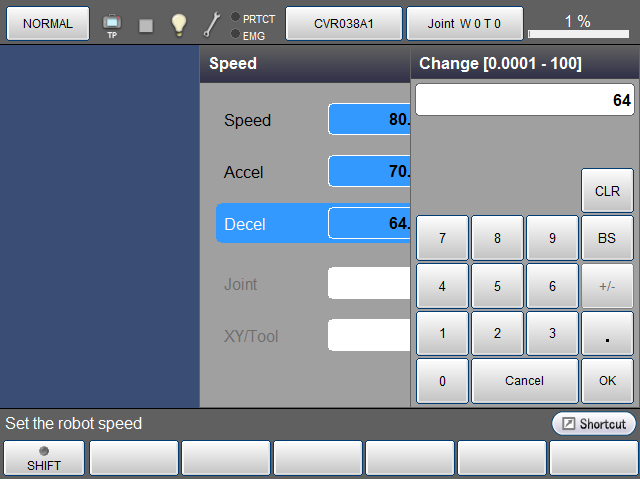

Use the numerical keypad displayed on the screen to enter any value. Press [CLR] or [BS] key to cancel the entered value. Check the entered value, and press [OK] key if it is correct.

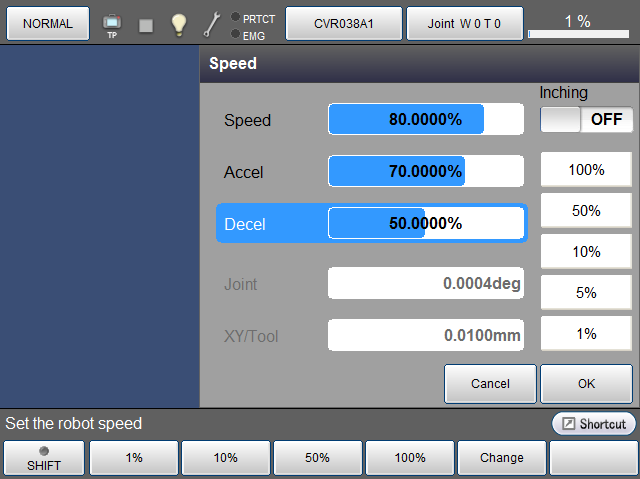

The numerical keypad is disappeared, and the deceleration is updated with the entered value as shown below. Press [OK] to confirm this value.

Press [Cancel] to cancel the value. The screen will return to normal. If [Cancel] is pressed here, the external speed and acceleration previously set will return to the original state.

8

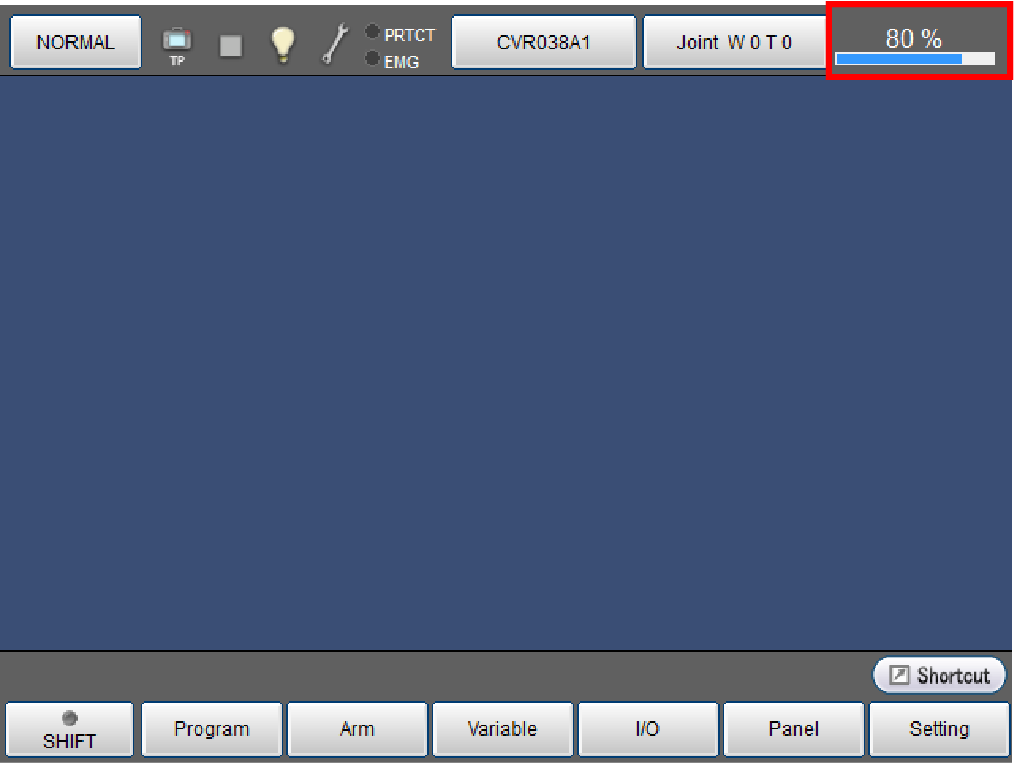

The display returns to the top window. Please make sure that the speed displayed on the right side of status bar is updated according to the above procedures.
