Group

This part provides mutually exclusive operation for a set of radio buttons.

Group Example

1

The following example demonstrates mutually exclusive operation with two sets of radio buttons.

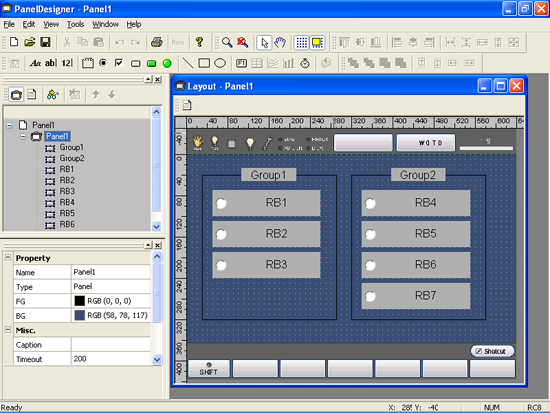

Place two groups with three and four radio buttons respectively on the panel layout.

2

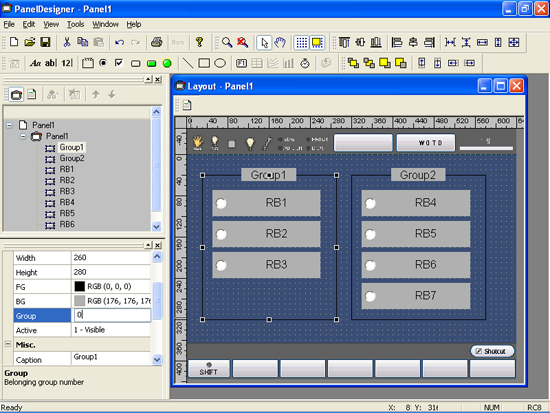

Assign group number 0 to Group1 and 1 to Group2.

3

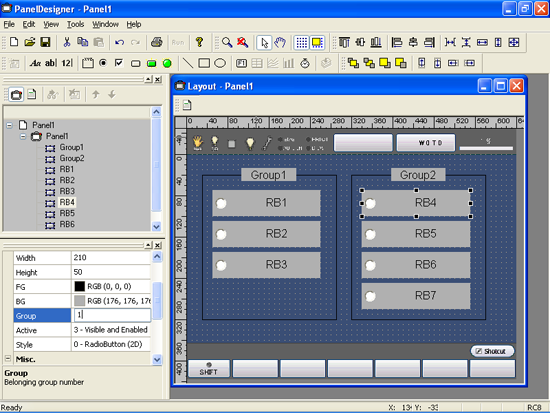

Set the property group for all radio buttons to the group number for the group to which they belong to ensure mutually exclusive operation within the group.

Compile this panel layout, download it to the COBOTTA, and test.
