ID : 6903

Release Mode Property

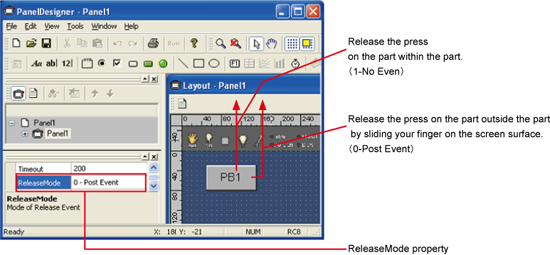

The releasemode property is added to the property screen, making it possible to specify the Released event execution condition. The property provides the following setting.

Releasemode parameter	The Released event executes:	Remarks
0 - Post Event	Even if a press on the part is released outside the part.	Default
1 - No Event	Only when a press on the part is released within the part.
Specifying the Released event execution condition The releasemode parameter can be contained, one per panel file. Changing the parameter applies to all parts containing the Released event.

Releasemode parameter

The Released event executes:

Remarks

0 - Post Event

Even if a press on the part is released outside the part.

Default

1 - No Event

Only when a press on the part is released within the part.

Specifying the Released event execution condition

The releasemode parameter can be contained, one per panel file. Changing the parameter applies to all parts containing the Released event.
